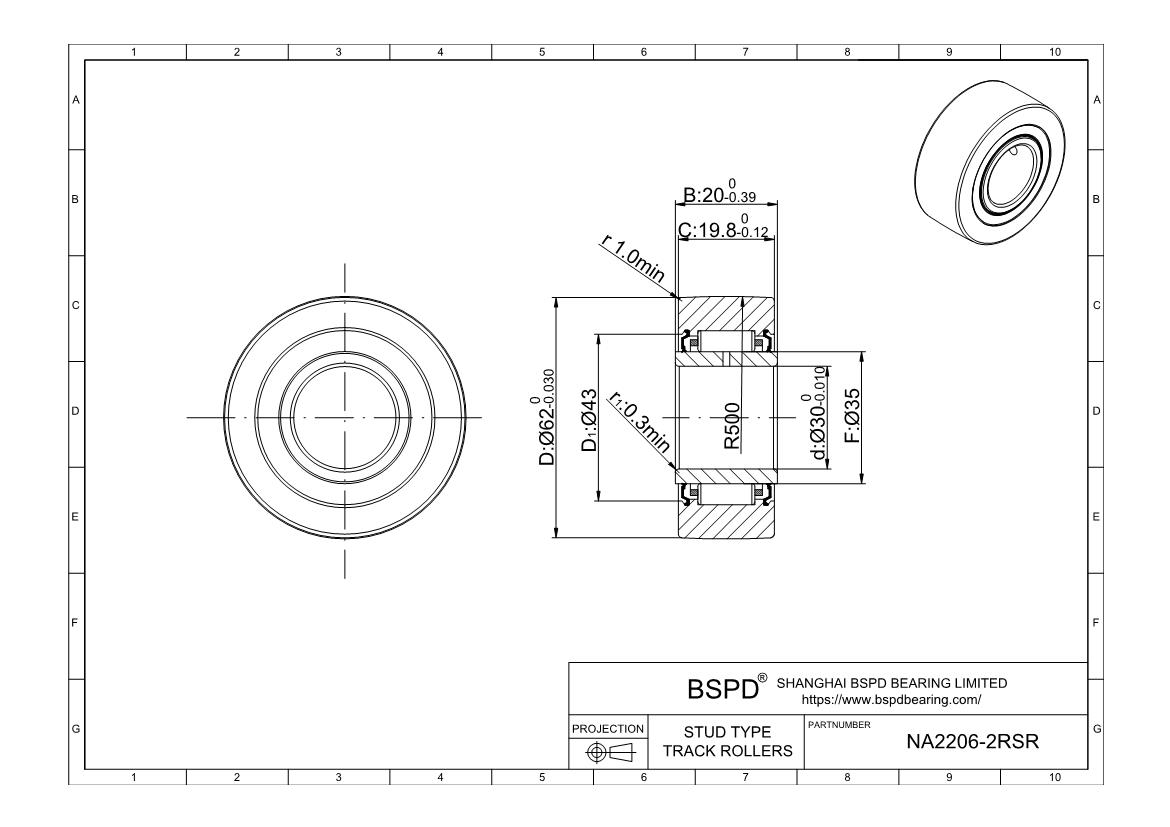

NA2206-2RSR
Cam Followers, Yoke Type & Stud Type Track Rollers
Dimensions: Roller Dia: 62 mm； Roller Width: 19.8 mm； Stud Dia: ； Stud Length: ；
REQUEST FOR QUOTE
Product Attributes
| Guide Roller Type | Track |
| Track Roller Type | Round |
| For Load Direction | Radial |
| Roller Profile | Flat |
| Roller Style | Yoke |
| Roller Material | Steel |
| d | 30 mm |
| D | 62 mm |
| B | 20 mm |
| C | 19.8 mm |
| D1 min | 43 mm |
| F | 35 mm |
| R | 500 mm |
| r1 min | 0.3 mm |
| rmin | 1 mm |
| Cr w | 17100 N |
| Cur w | 3550 N |
| Maximum Speed | 1400 1/min |
| Temperature Range | -20 to 110 °C |
| Shaft Mount Type | Press Fit |
| Bearing Type | Needle Roller |
| With Seal | Yes |
| Lubrication | Required |
| RoHS | Compliant |
| Weight (g) | 324 |
