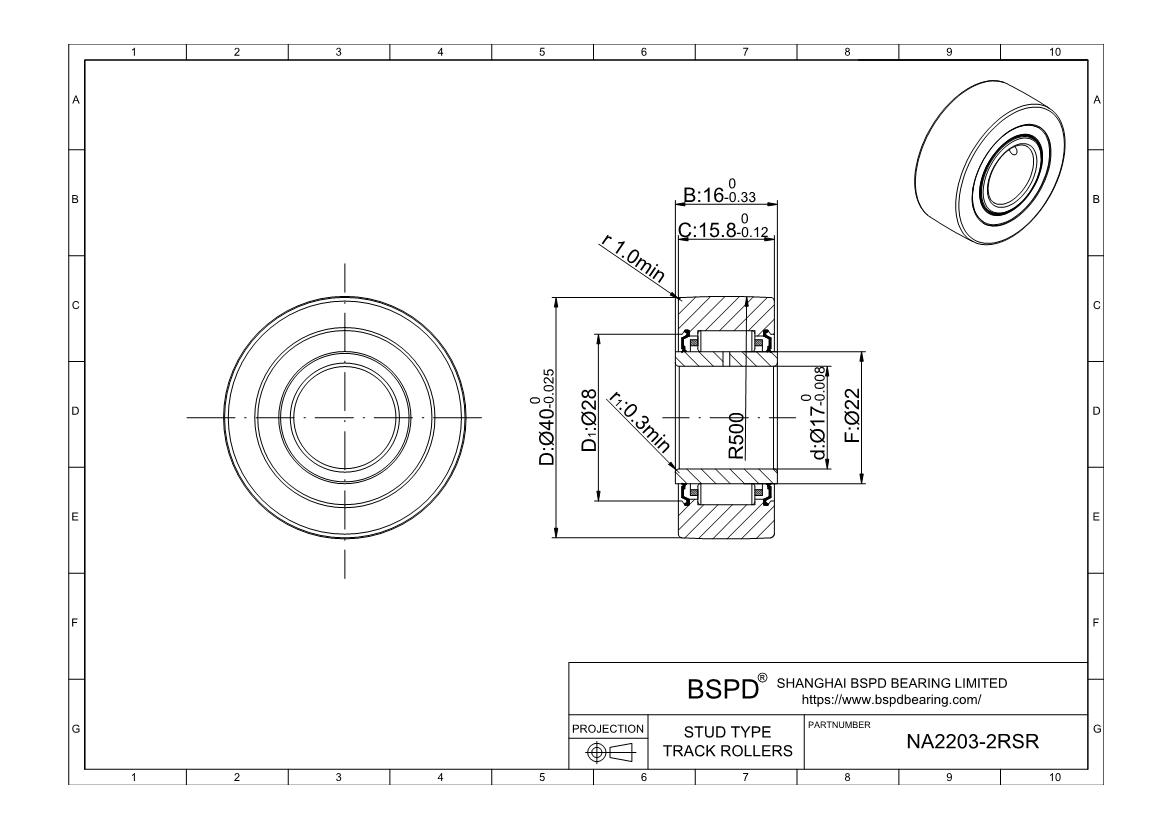

NA2203-2RSR
Cam Followers, Yoke Type & Stud Type Track Rollers
Dimensions: Roller Dia: 40 mm； Roller Width: 15.8 mm； Stud Dia: ； Stud Length: ；
REQUEST FOR QUOTE
Product Attributes
| Guide Roller Type | Track |
| Track Roller Type | Round |
| For Load Direction | Radial |
| Roller Profile | Flat |
| Roller Style | Yoke |
| Roller Material | Steel |
| d | 17 mm |
| D | 40 mm |
| B | 16 mm |
| C | 15.8 mm |
| D1 min | 28 mm |
| F | 22 mm |
| R | 500 mm |
| r1 min | 0.3 mm |
| rmin | 1 mm |
| Cr w | 9900 N |
| Cur w | 1840 N |
| Maximum Speed | 3000 1/min |
| Temperature Range | -20 to 110 °C |
| Shaft Mount Type | Press Fit |
| Bearing Type | Needle Roller |
| With Seal | Yes |
| Lubrication | Required |
| RoHS | Compliant |
| Weight (g) | 112 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings NA2203-2RSR ? Cam Followers, Yoke Type & Stud Type Track Rollers Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
