MTO-265X
Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 10.433"; Outer Diameter: 17.086"; Width (Thickness): 1.968";
![MTO-265X](https://www.bspdbearing.com/wp-content/uploads/2021/05/MT.jpg)
Slewing Bearings of similar size
Product Attributes
Specifications | |
Part Number | MTO-265X |
Moment Load Rating (Crm) | 71,900ft-lbs | 320.982KN |
Bearing Types | Slewing Ring Bearing |
Outline Dimensions and Weight | |
Outside Diameter of Outer Ring (Do) | 17.086" | 433.98mm |
Inside Diameter of Inner Ring (di) | 10.433" | 265mm |
Height of Overall Bearing Assembly (H) | 1.968" | 49.99mm |
Height of Inner Ring (Hi)/Height of Outer Ring (Ho) | 1.732" | 43.99mm |
Approximate Weight (lbs) | 61lbs | 27.669KG |
Mounting Holes | |
Bolt Circle in Outer Ring (Lo) | 15.354" | 389.99mm |
Number Holes in Outer Ring (no) | 18 |
Size of Hole in Outer Ring (Bo) | 0.594" |
Bolt Circle in Inner Ring (Li) | 11.614" | 295mm |
Number Holes in Inner Ring (ni) | 24 |
Size of Hole in Inner Ring (Bi) | 0.594" |
Gear Data | |
Pressure Angle of Gear Teeth (α) | - |
Tooth form | - |
Pitch diameter of gear(D2) | - |
Diametral pitch(Pd) | - |
Number of gear teeth(z2) | - |
Face width of gear teethαb2) | - |

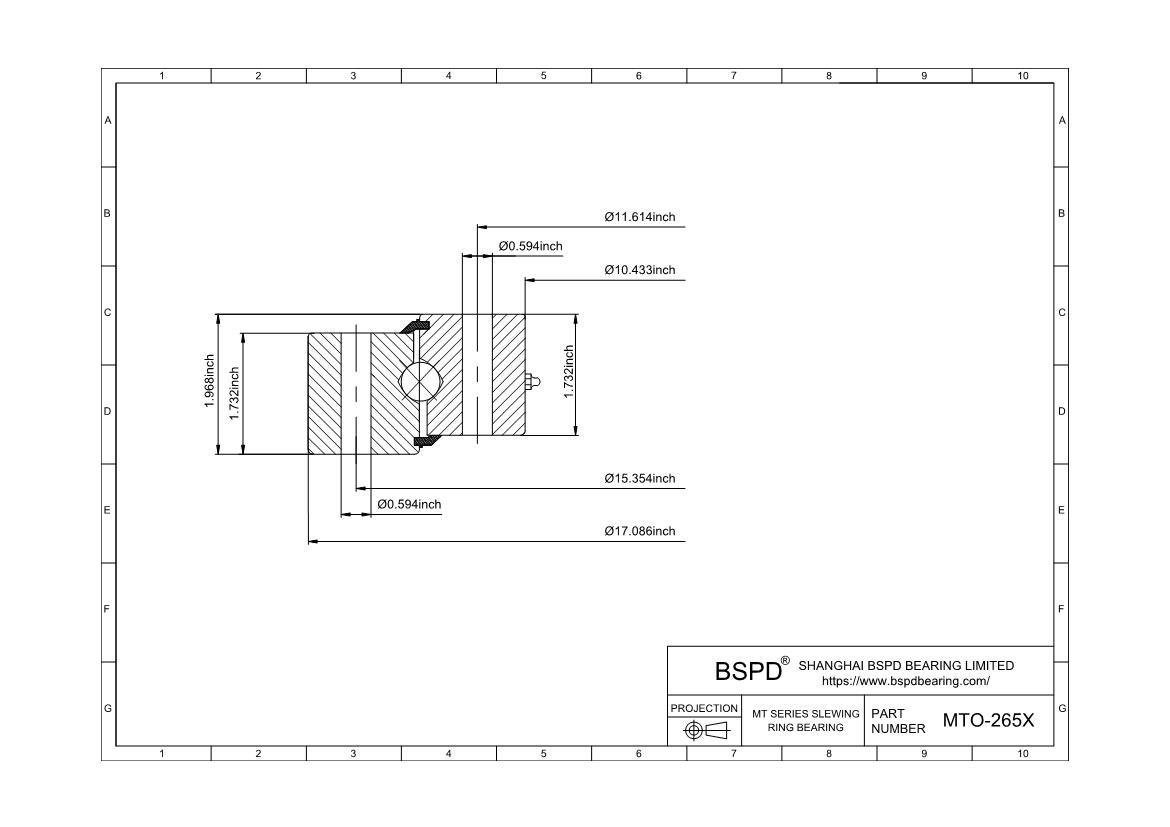

![MTO-265X](/wp-content/uploads/pdf/MTO-265X/1.jpg)
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings MTO-265X ? Kaydon Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
