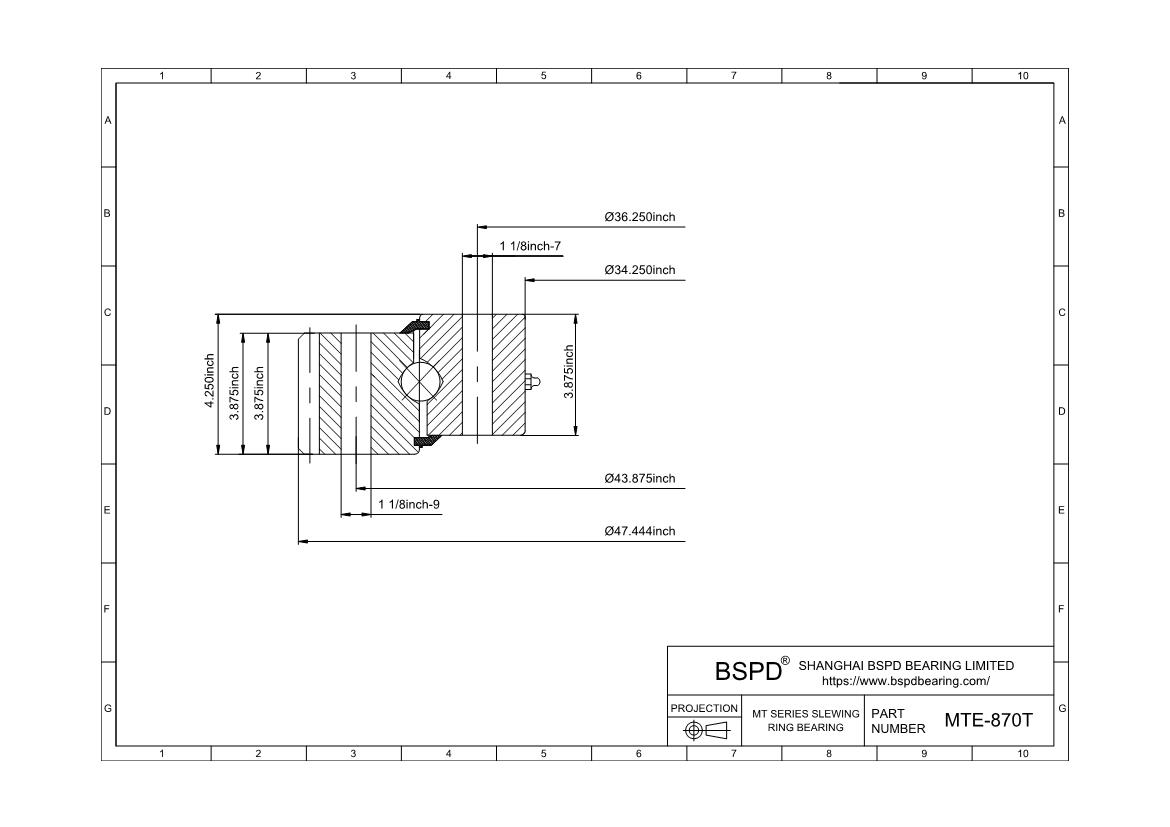

MTE-870T
Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 34.25"； Outer Diameter: 47.444"； Width (Thickness): 4.25";
Product Attributes
| Specifications | |
| Part Number | MTE-870T |
| Moment Load Rating (Crm) | 873000ft-lbs | 3897.321KN |
| Bearing Types | Slewing Ring Bearing |
| Outline Dimensions and Weight | |
| Outside Diameter of Outer Ring (Do) | 47.444" | 1205.08mm |
| Inside Diameter of Inner Ring (di) | 34.25" | 869.95mm |
| Height of Overall Bearing Assembly (H) | 4.250" | 107.95mm |
| Height of Inner Ring (Hi)/Height of Outer Ring (Ho) | 3.875" | 98.43mm |
| Approximate Weight (lbs) | 771lbs | 349.718KG |
| Mounting Holes | |
| Bolt Circle in Outer Ring (Lo) | 43.875" | 1114.43mm |
| Number Holes in Outer Ring (no) | 24 |
| Size of Hole in Outer Ring (Bo) | 1 1/8-7 |
| Bolt Circle in Inner Ring (Li) | 36.250" | 920.75mm |
| Number Holes in Inner Ring (ni) | 28 |
| Size of Hole in Inner Ring (Bi) | 1 1/8-7 |
| Gear Data | |
| Pressure Angle of Gear Teeth (α) | 20 º |
| Tooth form | SD |
| Pitch diameter of gear(D2) | 46.8" | 1188.72mm |
| Diametral pitch(Pd) | 2.5 |
| Number of gear teeth(z2) | 117 |
| Face width of gear teethαb2) | 3.875" |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings MTE-870T ? Kaydon Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
