MTE-730
Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 28.75"; Outer Diameter: 41.85"; Width (Thickness): 3.25";
![MTE-730](https://www.bspdbearing.com/wp-content/uploads/2021/05/MT.jpg)
Product Attributes
Specifications | |
Part Number | MTE-730 |
Moment Load Rating (Crm) | 588000ft-lbs | 2625KN |
Bearing Types | Slewing Ring Bearing |
Outline Dimensions and Weight | |
Outside Diameter of Outer Ring (Do) | 41.85" | 1062.99mm |
Inside Diameter of Inner Ring (di) | 28.75" | 730.25mm |
Height of Overall Bearing Assembly (H) | 3.250" | 82.55mm |
Height of Inner Ring (Hi)/Height of Outer Ring (Ho) | 2.880" | 73.15mm |
Approximate Weight (lbs) | 491lbs | 222.713KG |
Mounting Holes | |
Bolt Circle in Outer Ring (Lo) | 38.000" | 965.2mm |
Number Holes in Outer Ring (no) | 20 |
Size of Hole in Outer Ring (Bo) | 1.063" |
Bolt Circle in Inner Ring (Li) | 31.000" | 787.4mm |
Number Holes in Inner Ring (ni) | 24 |
Size of Hole in Inner Ring (Bi) | 1.063" |
Gear Data | |
Pressure Angle of Gear Teeth (α) | 20 º |
Tooth form | SD |
Pitch diameter of gear(D2) | 41.2" | 1046.48mm |
Diametral pitch(Pd) | 2.5 |
Number of gear teeth(z2) | 103 |
Face width of gear teethαb2) | 2.63" |

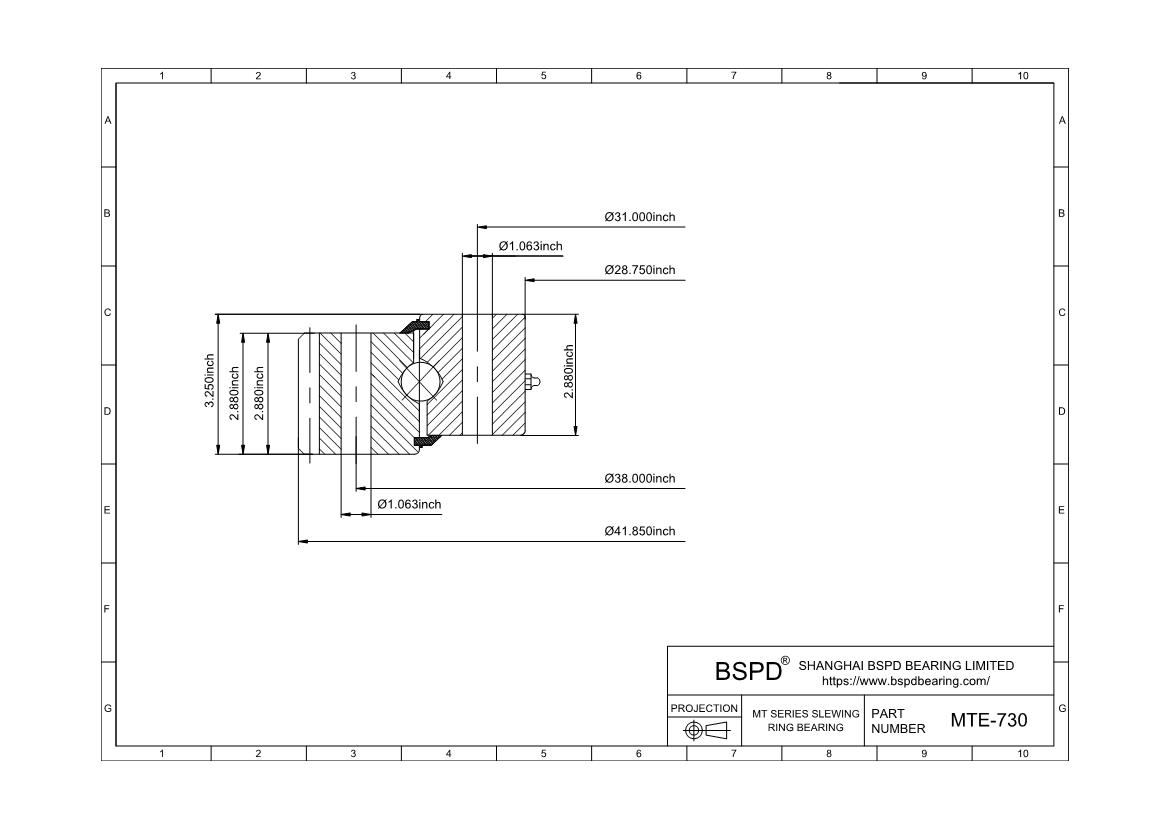

![MTE-730](/wp-content/uploads/pdf/MTE-730/1.jpg)
Print PDF
Request a 3D CAD Model
