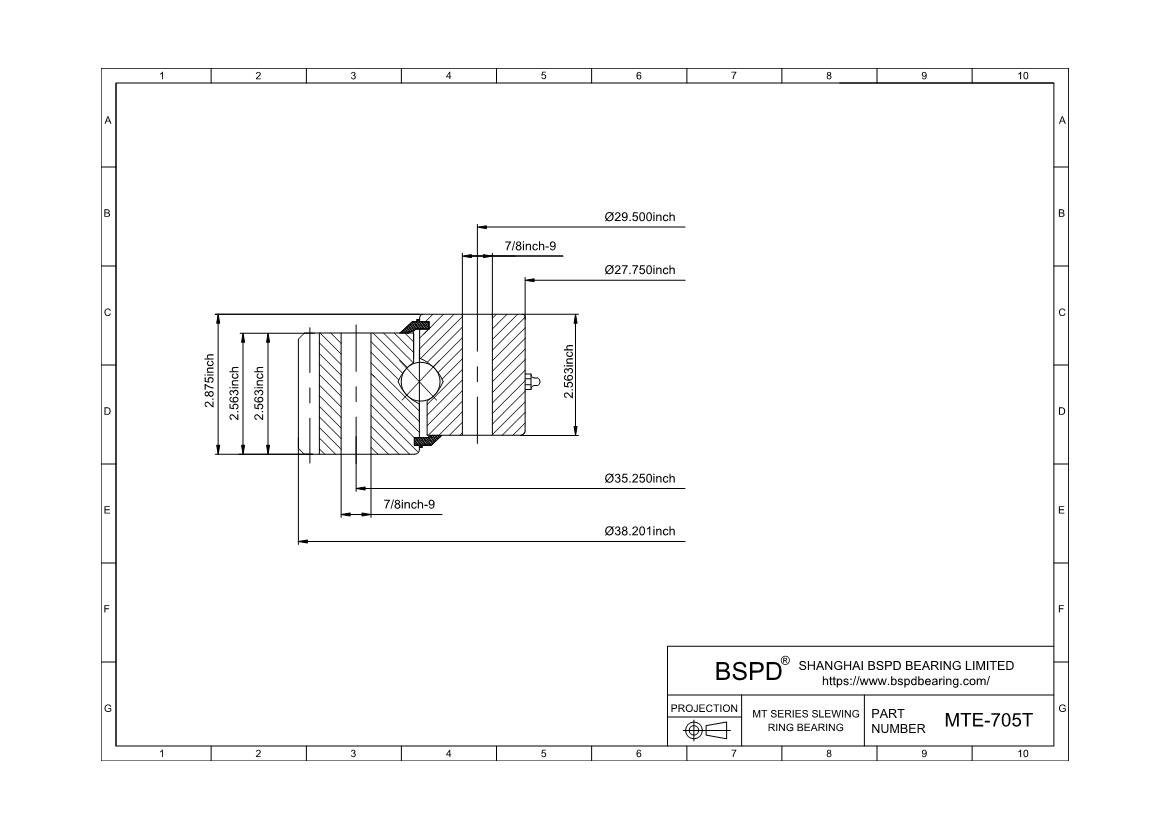

MTE-705T
Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 27.75"； Outer Diameter: 38.201"； Width (Thickness): 2.875";
Product Attributes
| Specifications | |
| Part Number | MTE-705T |
| Moment Load Rating (Crm) | 443200ft-lbs | 1978.571KN |
| Bearing Types | Slewing Ring Bearing |
| Outline Dimensions and Weight | |
| Outside Diameter of Outer Ring (Do) | 38.201" | 970.31mm |
| Inside Diameter of Inner Ring (di) | 27.75" | 704.85mm |
| Height of Overall Bearing Assembly (H) | 2.875" | 73.03mm |
| Height of Inner Ring (Hi)/Height of Outer Ring (Ho) | 2.563" | 65.1mm |
| Approximate Weight (lbs) | 325lbs | 147.417KG |
| Mounting Holes | |
| Bolt Circle in Outer Ring (Lo) | 35.250" | 895.35mm |
| Number Holes in Outer Ring (no) | 24 |
| Size of Hole in Outer Ring (Bo) | 0.938" |
| Bolt Circle in Inner Ring (Li) | 29.500" | 749.3mm |
| Number Holes in Inner Ring (ni) | 28 |
| Size of Hole in Inner Ring (Bi) | 0.938" |
| Gear Data | |
| Pressure Angle of Gear Teeth (α) | 20 º |
| Tooth form | SD |
| Pitch diameter of gear(D2) | 37.667" | 956.74mm |
| Diametral pitch(Pd) | 3 |
| Number of gear teeth(z2) | 113 |
| Face width of gear teethαb2) | 2.563" |
| Mating Pinions | 39200003 39200004 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings MTE-705T ? Kaydon Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
REQUEST FOR QUOTE
- Fast Delivery √
- Best Quality √
- Good Price √
