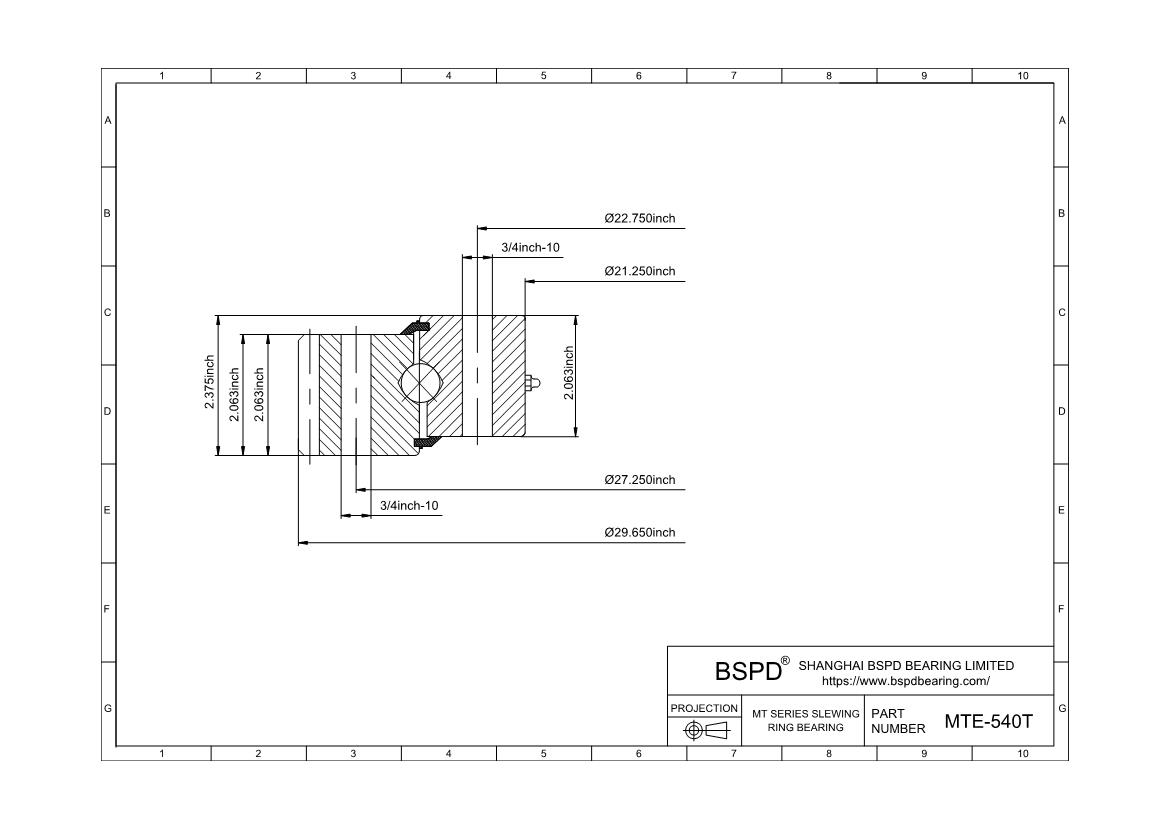

MTE-540T
Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 21.25"； Outer Diameter: 29.65"； Width (Thickness): 2.375";
Product Attributes
| Specifications | |
| Part Number | MTE-540T |
| Moment Load Rating (Crm) | 232000ft-lbs | 1035.714KN |
| Bearing Types | Slewing Ring Bearing |
| Outline Dimensions and Weight | |
| Outside Diameter of Outer Ring (Do) | 29.65" | 753.11mm |
| Inside Diameter of Inner Ring (di) | 21.25" | 539.75mm |
| Height of Overall Bearing Assembly (H) | 2.375" | 60.33mm |
| Height of Inner Ring (Hi)/Height of Outer Ring (Ho) | 2.063" | 52.4mm |
| Approximate Weight (lbs) | 163lbs | 73.935KG |
| Mounting Holes | |
| Bolt Circle in Outer Ring (Lo) | 27.250" | 692.15mm |
| Number Holes in Outer Ring (no) | 24 |
| Size of Hole in Outer Ring (Bo) | 3/4-10 |
| Bolt Circle in Inner Ring (Li) | 22.750" | 577.85mm |
| Number Holes in Inner Ring (ni) | 28 |
| Size of Hole in Inner Ring (Bi) | 3/4-10 |
| Gear Data | |
| Pressure Angle of Gear Teeth (α) | 20 º |
| Tooth form | SD |
| Pitch diameter of gear(D2) | 29.25" | 742.95mm |
| Diametral pitch(Pd) | 4 |
| Number of gear teeth(z2) | 117 |
| Face width of gear teethαb2) | 2.063" |
| Mating Pinions | 39200001 39200002 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings MTE-540T ? Kaydon Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
