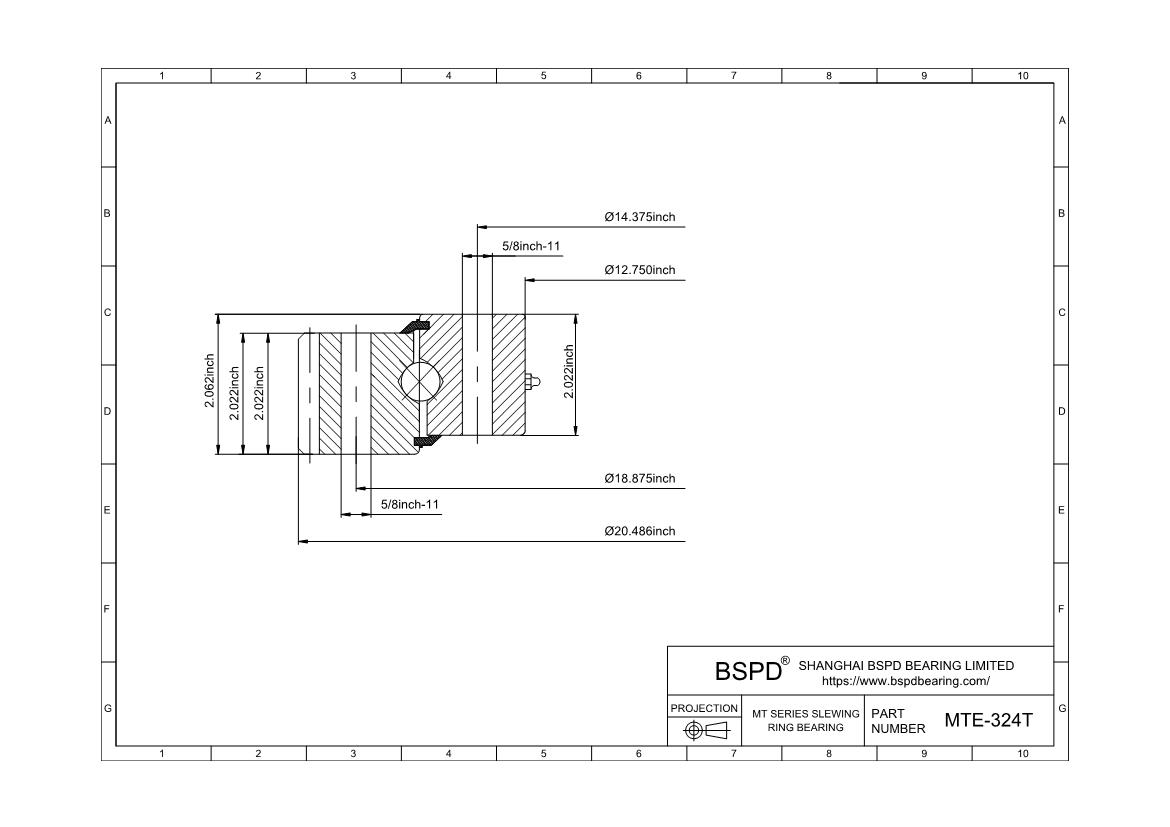

MTE-324T
Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 12.75"； Outer Diameter: 20.486"； Width (Thickness): 2.062";
Product Attributes
| Specifications | |
| Part Number | MTE-324T |
| Moment Load Rating (Crm) | 102400ft-lbs | 457.143KN |
| Bearing Types | Slewing Ring Bearing |
| Outline Dimensions and Weight | |
| Outside Diameter of Outer Ring (Do) | 20.486" | 520.34mm |
| Inside Diameter of Inner Ring (di) | 12.750" | 323.85mm |
| Height of Overall Bearing Assembly (H) | 2.062" | 52.37mm |
| Height of Inner Ring (Hi)/Height of Outer Ring (Ho) | 2.022" | 51.36mm |
| Approximate Weight (lbs) | 98lbs | 44.452KG |
| Mounting Holes | |
| Bolt Circle in Outer Ring (Lo) | 18.875" | 479.43mm |
| Number Holes in Outer Ring (no) | 20 |
| Size of Hole in Outer Ring (Bo) | 5/8-11 |
| Bolt Circle in Inner Ring (Li) | 14.375" | 365.13mm |
| Number Holes in Inner Ring (ni) | 20 |
| Size of Hole in Inner Ring (Bi) | 5/8-11 |
| Gear Data | |
| Pressure Angle of Gear Teeth (α) | 20 º |
| Tooth form | FS |
| Pitch diameter of gear(D2) | 20.2" | 513.08mm |
| Diametral pitch(Pd) | 5/7 |
| Number of gear teeth(z2) | 101 |
| Face width of gear teethαb2) | 2.022" |
| Mating Pinions | 39201001 |
Print PDF
Request a 3D CAD Model
