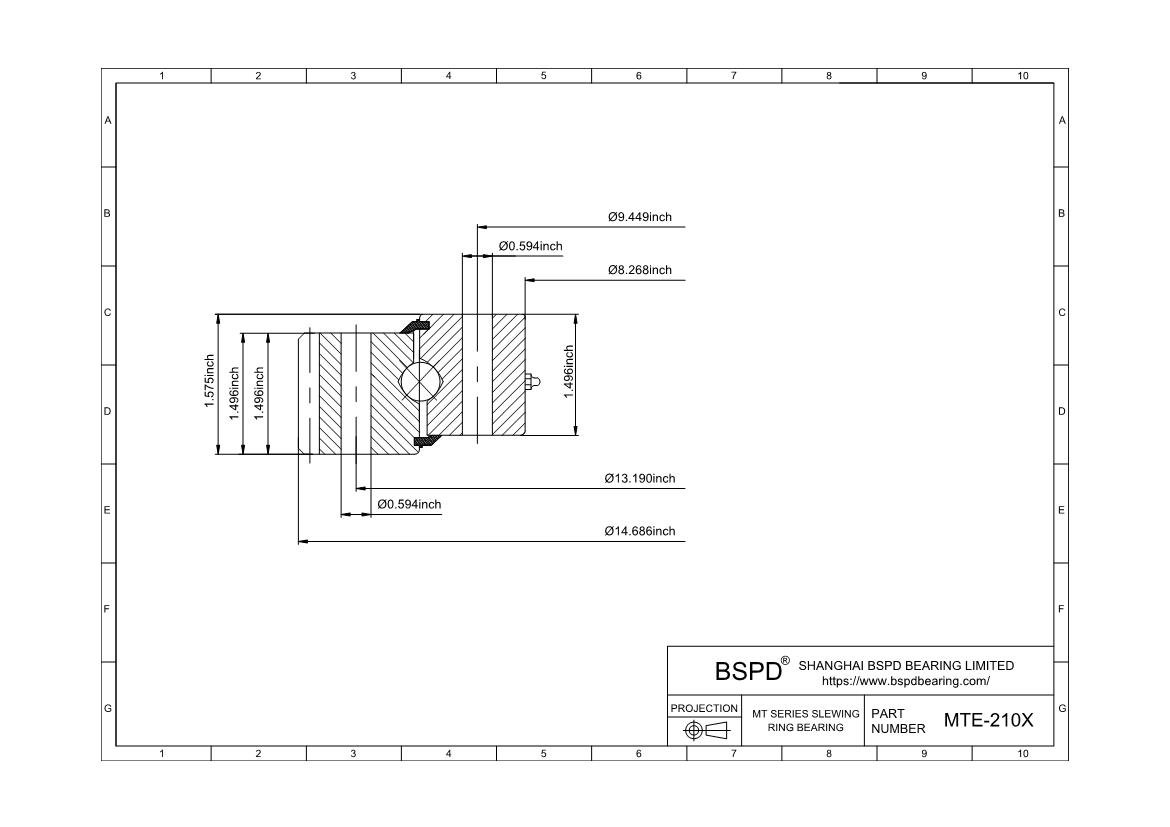

MTE-210X
Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 8.268"； Outer Diameter: 14.686"； Width (Thickness): 1.968";
Slewing Bearings of similar size
Product Attributes
| Specifications | |
| Part Number | MTE-210X |
| Moment Load Rating (Crm) | 52100ft-lbs | 232.589KN |
| Bearing Types | Slewing Ring Bearing |
| Outline Dimensions and Weight | |
| Outside Diameter of Outer Ring (Do) | 14.686" | 373.02mm |
| Inside Diameter of Inner Ring (di) | 8.268" | 210.01mm |
| Height of Overall Bearing Assembly (H) | 1.968" | 49.99mm |
| Height of Inner Ring (Hi)/Height of Outer Ring (Ho) | 1.732" | 43.99mm |
| Approximate Weight (lbs) | 44lbs | 19.958KG |
| Mounting Holes | |
| Bolt Circle in Outer Ring (Lo) | 13.190" | 335.03mm |
| Number Holes in Outer Ring (no) | 16 |
| Size of Hole in Outer Ring (Bo) | 0.594" |
| Bolt Circle in Inner Ring (Li) | 9.449" | 240mm |
| Number Holes in Inner Ring (ni) | 20 |
| Size of Hole in Inner Ring (Bi) | 0.594" |
| Gear Data | |
| Pressure Angle of Gear Teeth (α) | 20 º |
| Tooth form | FS |
| Pitch diameter of gear(D2) | 14.4" | 365.76mm |
| Diametral pitch(Pd) | 5/7 |
| Number of gear teeth(z2) | 72 |
| Face width of gear teethαb2) | 1.732" |
| Mating Pinions | 39201001 |
