MR105ZZ Miniature Bearing

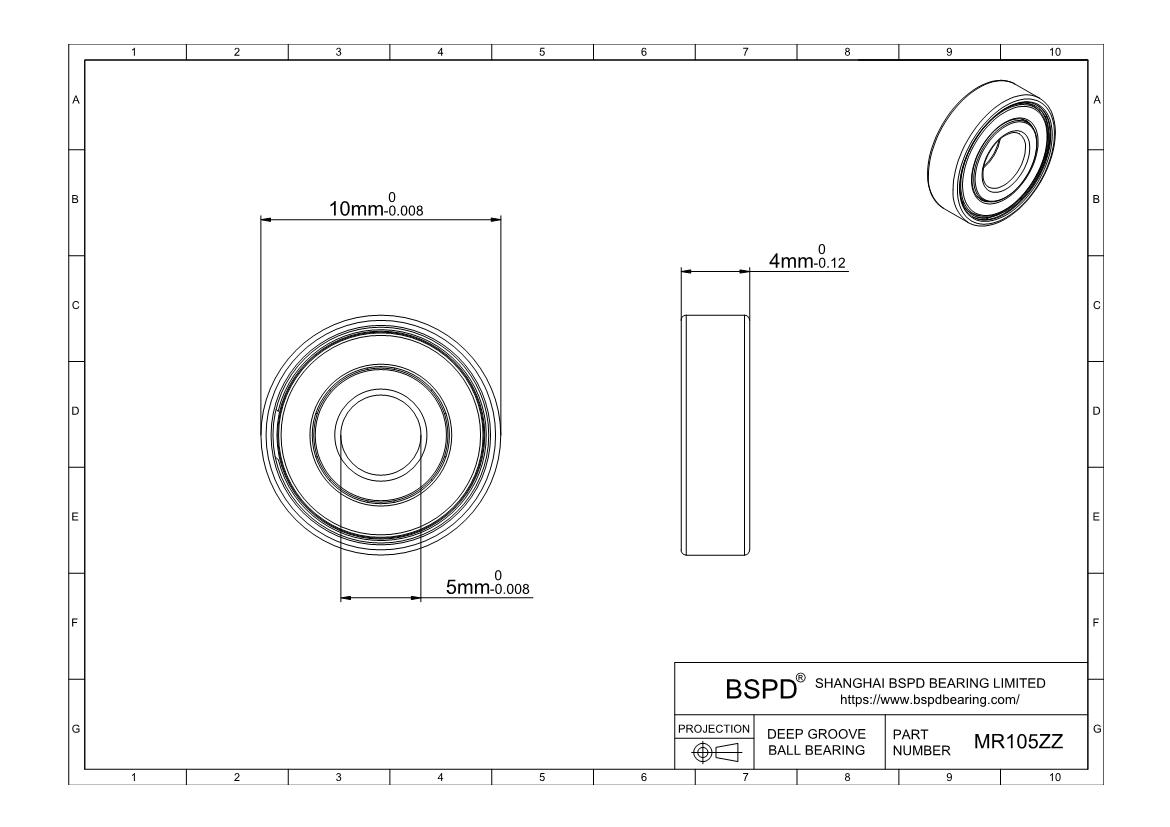

Dimensions: Bore (Inner) Diameter: 5 mm； Outer Diameter: 10 mm； Width (Thickness): 4 mm;

MR105ZZ
Slewing Bearings of similar size
same inner diameter
same outer diameter
same width
Product Attributes
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Shielded
Part Number MR105zz
For Shaft Diameter 5mm
Bore Dia (d) 5 mm
Bore Dia Tolerance -0.008mm to 0
For Housing ID 10mm
Outer Dia (D) 10mm
Outer Dia Tolerance -0.008mm to 0
Width (B) 4mm
Width Tolerance -0.12mm to 0
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material 300 Series Stainless Steel
Shield Material 300 Series Stainless Steel
Dynamic Load Rating (Cr) (Newtons) 366
Static Load Rating (Cor) (Newtons) 135
Max Speed (Grease) (X1000 RPM) 50
Max Speed (Oil) (X1000 RPM)  60
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Trade No. C0
Radial Clearance 0.002mm to 0.013mm
RoHS Compliant
Ball Qty 8
Ball Dia 1.2000mm
Weight (grams) 1.26
MR105ZZ
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
