M7-42P1Z
Inch Size Slewing Rings

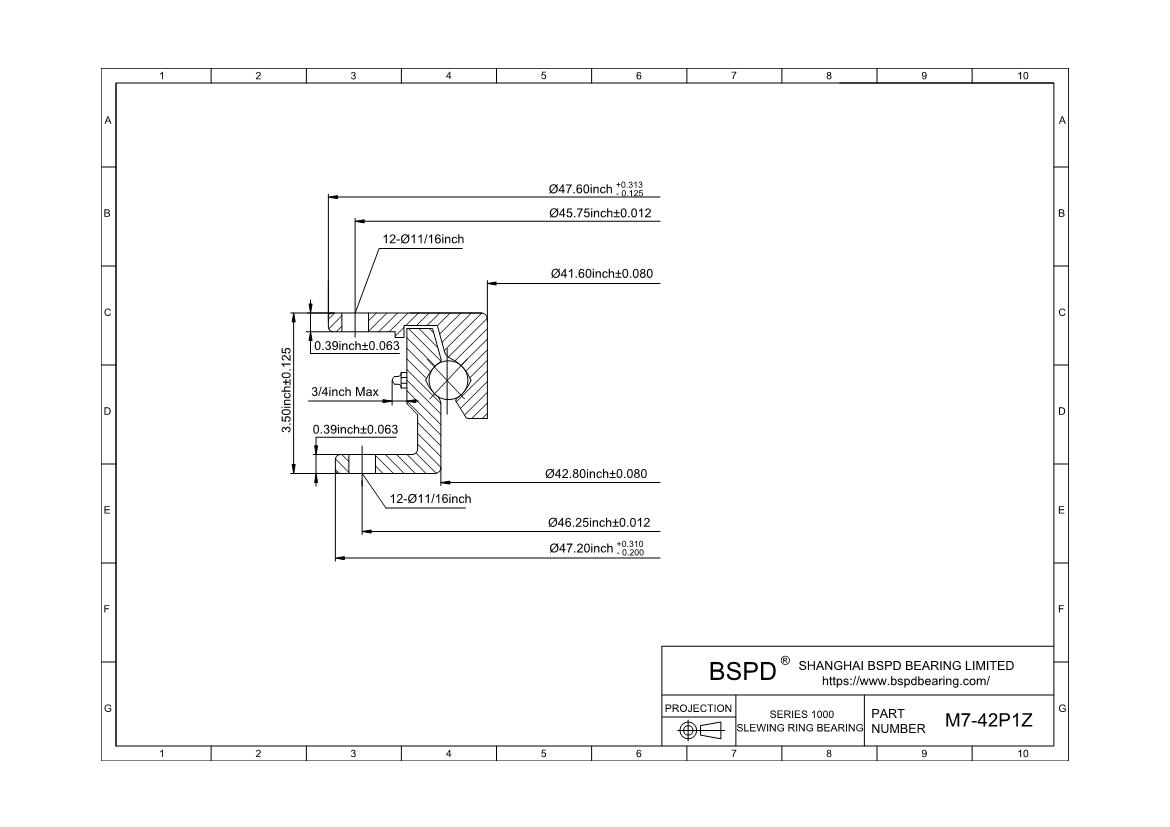

Dimensions: Bore (Inner) Diameter: 41.6"； Outer Diameter: 47.6"； Width (Thickness): 3.5";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | M7-42P1Z |
| Thrust Fifht Wheel | 35200 |
| Weight(lbs) | 174 |
| Outline Dimensions(inches) | |
| OD | 47.6 |
| ID | 41.6 |
| IO | 47.2 |
| OI | 42.8 |
| HT | 3.5 |
| A | 0.39 |
| Mounting Holes | |
| OBC | 46.25 |
| IBC | 45.75 |
| DIA | 11/16 |
| Holes Per Race | 12 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings M7-42P1Z ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
