M5-34P1
Inch Size Slewing Rings

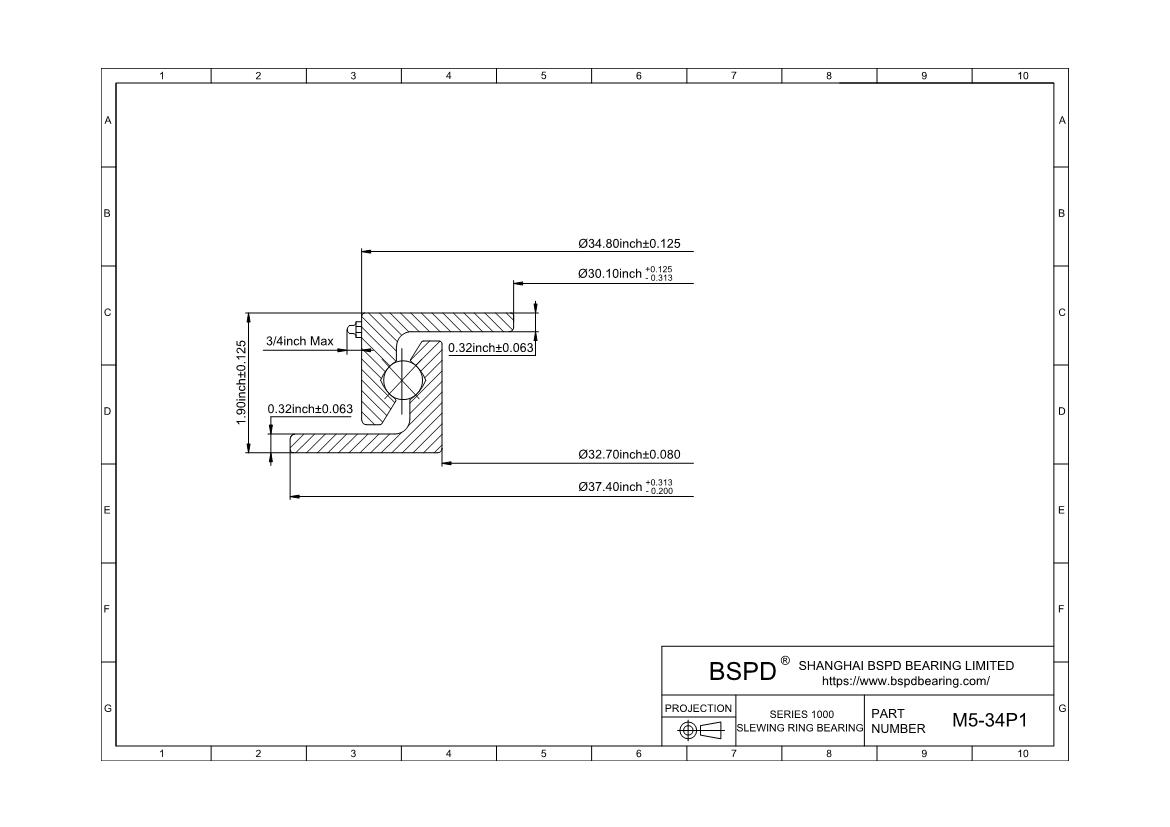

Dimensions: Bore (Inner) Diameter: 30.1"； Outer Diameter: 37.4"； Width (Thickness): 1.9";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | M5-34P1 |
| Thrust Fifht Wheel | 8800 |
| Weight(lbs) | 75 |
| Outline Dimensions(inches) | |
| OD | 37.4 |
| ID | 30.1 |
| IO | 34.8 |
| OI | 32.7 |
| HT | 1.9 |
| A | 0.32 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings M5-34P1 ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
