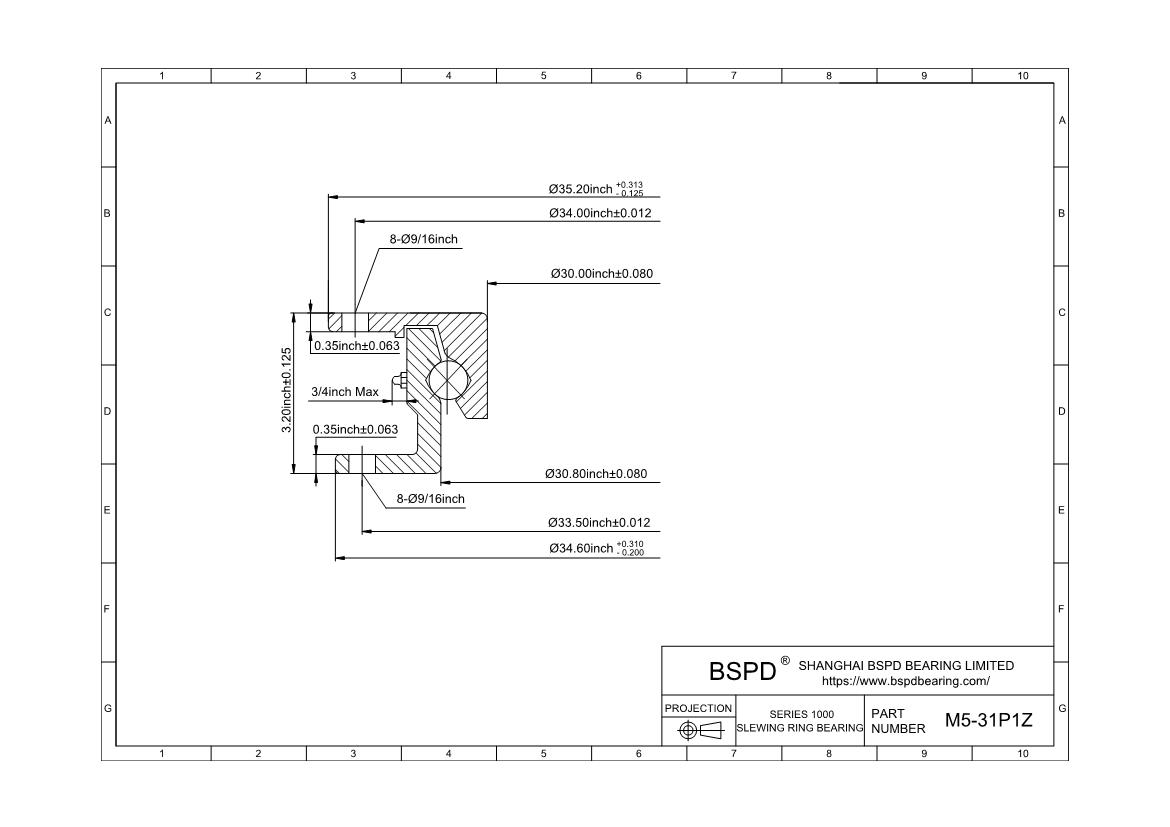

M5-31P1Z
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 30.0"； Outer Diameter: 35.2"； Width (Thickness): 3.2";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | M5-31P1Z |
| Thrust Fifht Wheel | 15400 |
| Weight(lbs) | 95 |
| Outline Dimensions(inches) | |
| OD | 35.2 |
| ID | 30 |
| IO | 34.6 |
| OI | 30.8 |
| HT | 3.2 |
| A | 0.35 |
| Mounting Holes | |
| OBC | 34 |
| IBC | 33.5 |
| DIA | 9/16 |
| Holes Per Race | 8 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings M5-31P1Z ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
