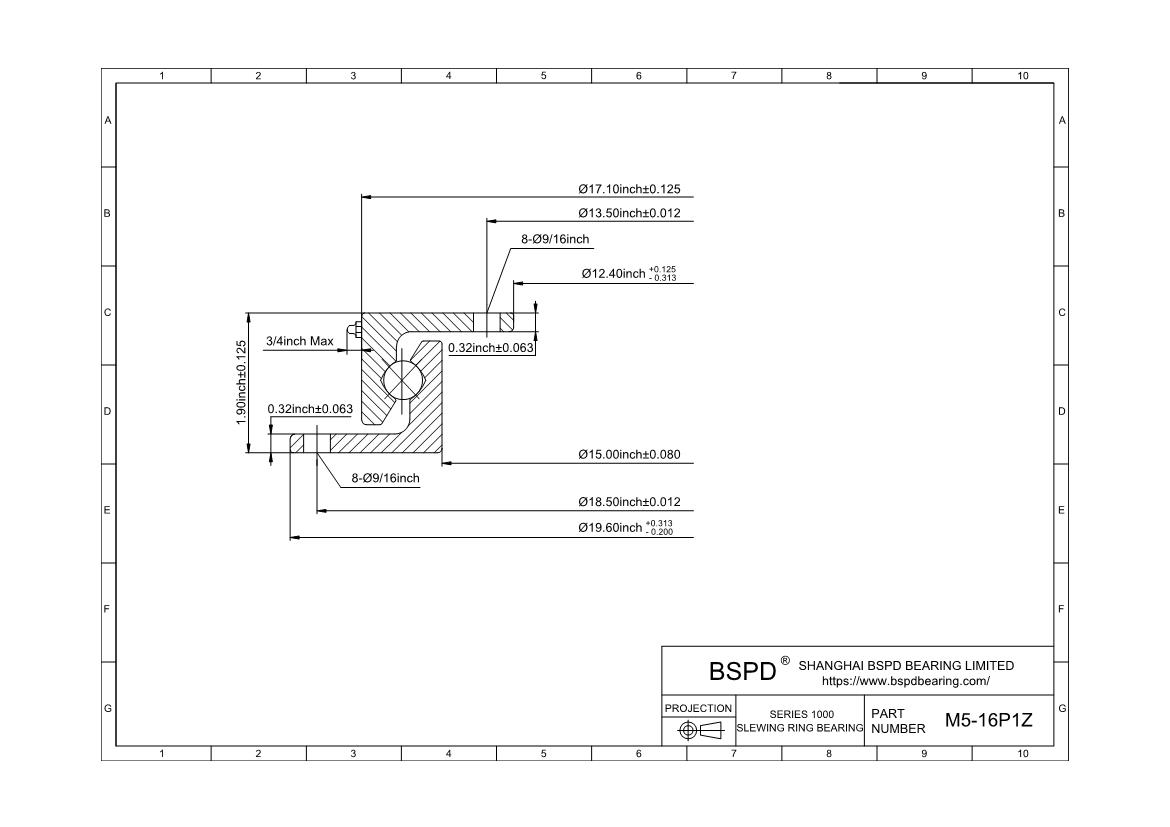

M5-16P1Z
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 12.4"； Outer Diameter: 19.6"； Width (Thickness): 1.9";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | M5-16P1Z |
| Thrust Fifht Wheel | 3960 |
| Weight(lbs) | 40 |
| Outline Dimensions(inches) | |
| OD | 19.6 |
| ID | 12.4 |
| IO | 17.1 |
| OI | 15 |
| HT | 1.9 |
| A | 0.32 |
| Mounting Holes | |
| OBC | 18.5 |
| IBC | 13.5 |
| DIA | 9/16 |
| Holes Per Race | 8 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings M5-16P1Z ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
