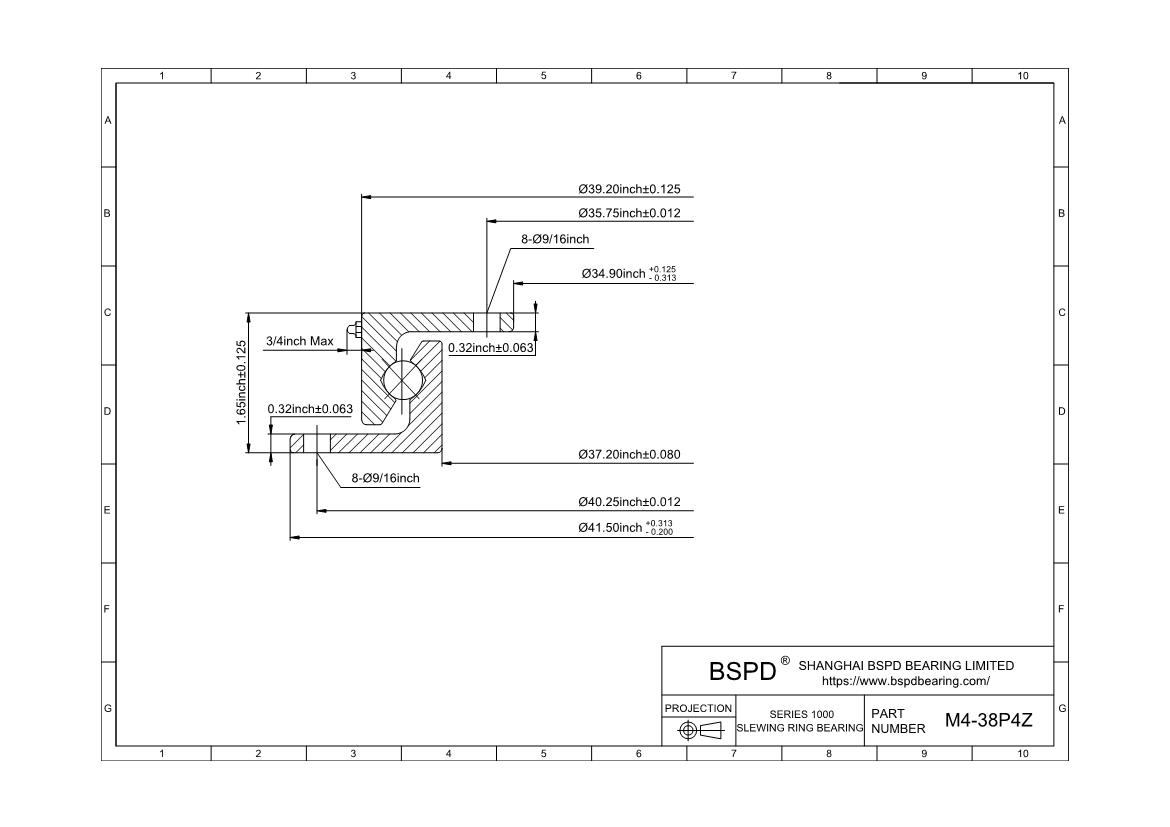

M4-38P4Z
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 34.9"； Outer Diameter: 41.5"； Width (Thickness): 1.65";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | M4-38P4Z |
| Thrust Fifht Wheel | 7920 |
| Weight(lbs) | 75 |
| Outline Dimensions(inches) | |
| OD | 41.5 |
| ID | 34.9 |
| IO | 39.2 |
| OI | 37.2 |
| HT | 1.65 |
| A | 0.32 |
| Mounting Holes | |
| OBC | 40.25 |
| IBC | 35.75 |
| DIA | 9/16 |
| Holes Per Race | 8 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings M4-38P4Z ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
