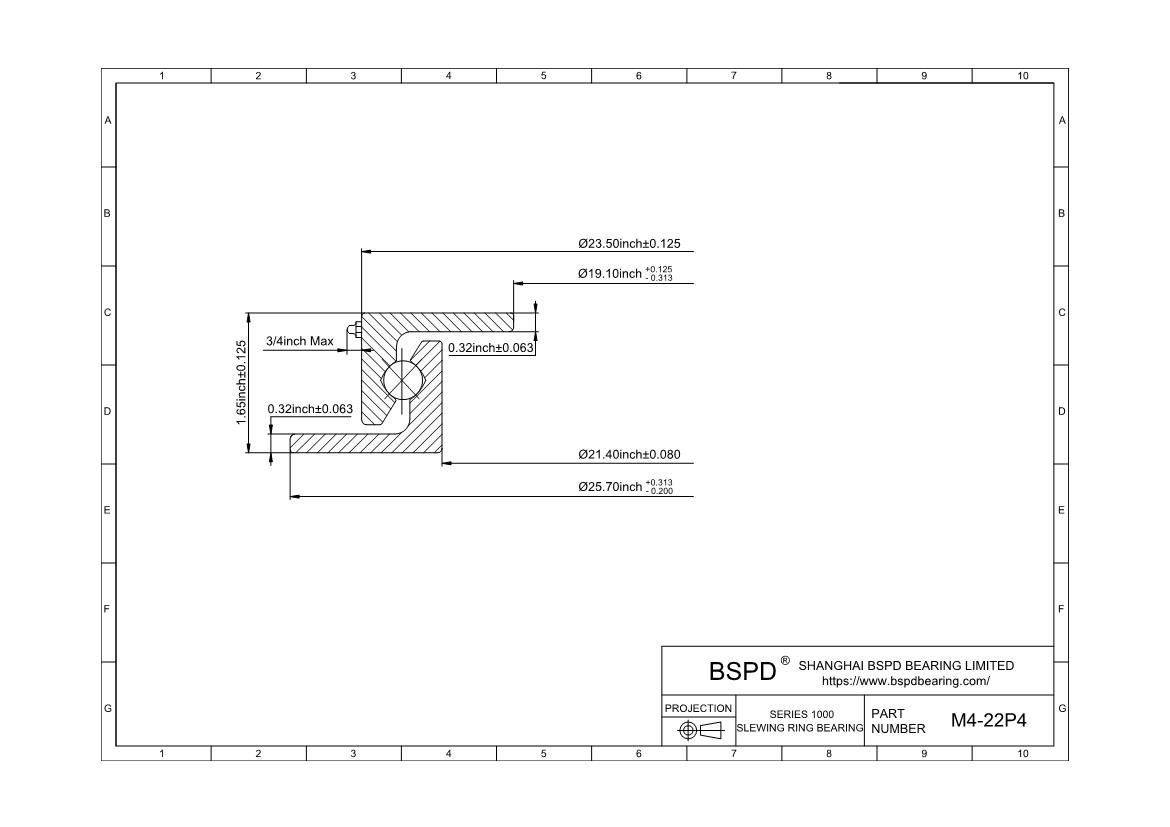

M4-22P4
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 19.1"； Outer Diameter: 25.7"； Width (Thickness): 1.65";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | M4-22P4 |
| Thrust Fifht Wheel | 3300 |
| Weight(lbs) | 44 |
| Outline Dimensions(inches) | |
| OD | 25.7 |
| ID | 19.1 |
| IO | 23.5 |
| OI | 21.4 |
| HT | 1.65 |
| A | 0.32 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings M4-22P4 ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
