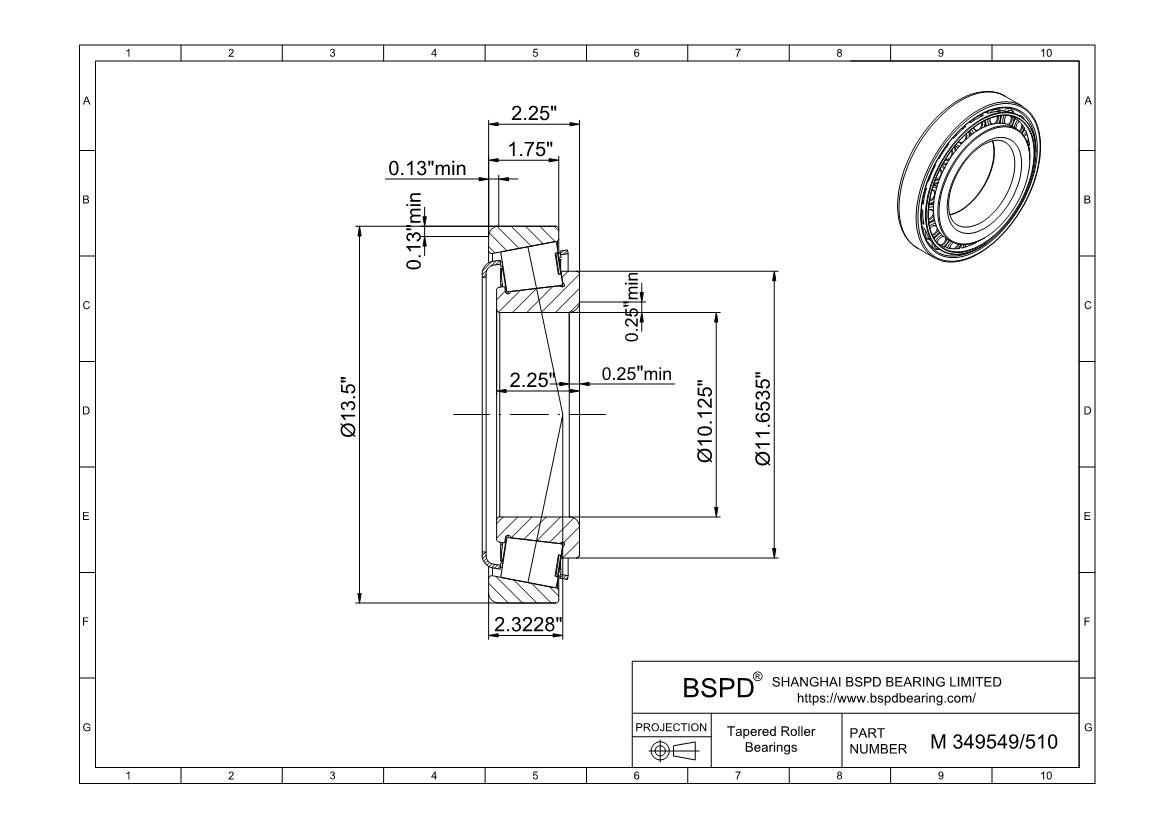

M 349549/510
Inch Single Row Tapered Roller Bearings
Dimensions: Bore (Inner) Diameter: 10.1250 "； Outer Diameter: 13.5000 "； Width (Thickness): 2.2500 ";
REQUEST FOR QUOTE
Product Attributes
| Product Number | M 349549/510 |
| Bore diameter | 10.1250 " |
| Outside diameter | 13.5000 " |
| Total width | 2.2500 " |
| Shoulder diameter of inner ring | 11.6535 " |
| Widthof inner ring | 2.2500 " |
| Width of outer ring | 1.7500 " |
| Chamfer minimum dimension of inner ring (r1,2) | 6.4 mm |
| Chamfer minimum dimension of outer ring (r3,4) | 3.3 |
| Distance side face to pressure point (a) | 59 |
| Basic dynamic load rating (Cr) | 698 |
| Basic static load rating (Cor) | 1400 |
| Fatigue load limit (Pu) | 125 |
| Reference speed | 1300 r/min |
| Limiting speed | 1600 r/min |
| Mass | 14 kg |
| Limiting value (e) | 0.35 |
| Axial load factor (Y) | 1.7 |
| Axial load factor (Y0) | 0.9 |
| Maximum diameter of shaft abutment (da) | 273 mm |
| Minimum diameter of shaft abutment (db) | 281 mm |
| Minimum diameter of housing abutment (Da) | 318 mm |
| Maximum diameter of housing abutment (Da) | 327 mm |
| Minimum diameter of housing abutment (Db) | 331 mm |
| Minimum width of space required in housing on large side face (C | 9 mm |
| Minimum width of space required in housing on small side face (C | 12.5 mm |
| Maximum Radius of shaft fillet (ra) | 6.4 mm |
| Maximum Radius of housing fillet (rb) | 3.3 mm |
