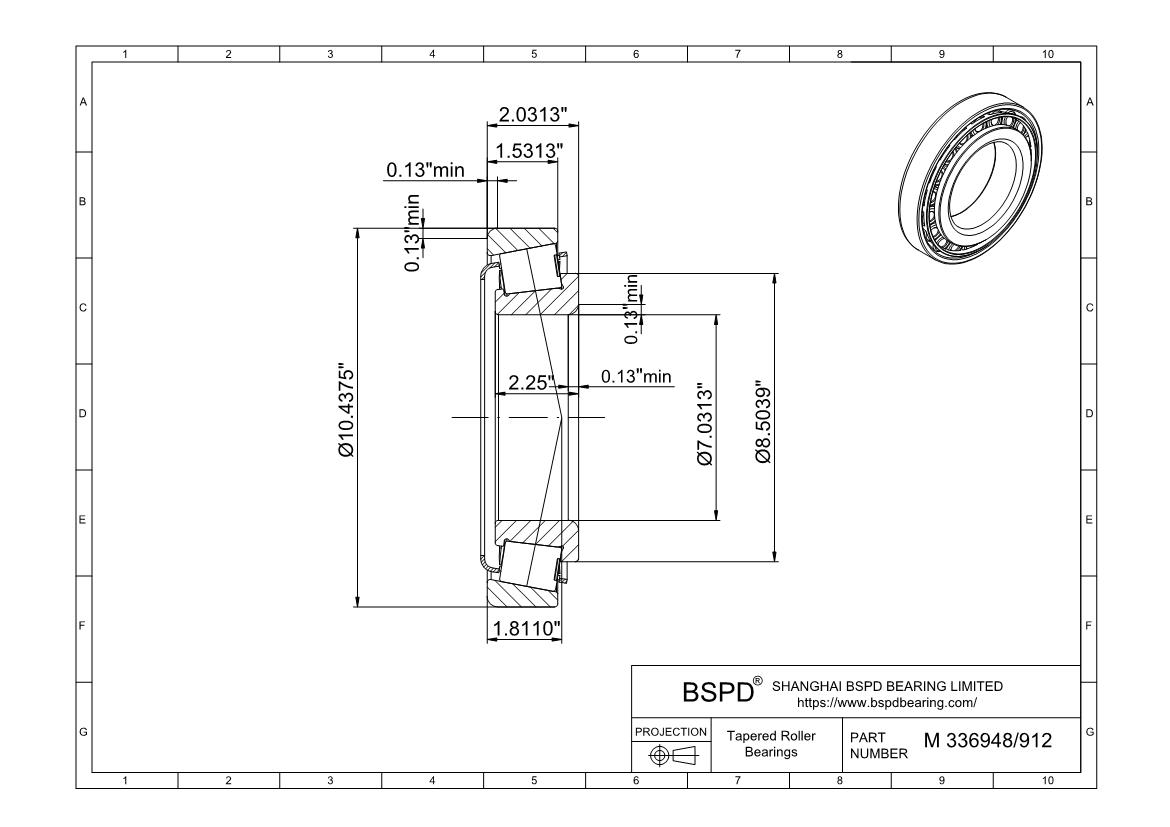

M 336948/912
Inch Single Row Tapered Roller Bearings
Dimensions: Bore (Inner) Diameter: 7.0313 "； Outer Diameter: 10.4375 "； Width (Thickness): 2.0313 ";
REQUEST FOR QUOTE
Product Attributes
| Product Number | M 336948/912 |
| Bore diameter | 7.0313 " |
| Outside diameter | 10.4375 " |
| Total width | 2.0313 " |
| Shoulder diameter of inner ring | 8.5039 " |
| Widthof inner ring | 2.2500 " |
| Width of outer ring | 1.5313 " |
| Chamfer minimum dimension of inner ring (r1,2) | 3.3 mm |
| Chamfer minimum dimension of outer ring (r3,4) | 3.3 |
| Distance side face to pressure point (a) | 46 |
| Basic dynamic load rating (Cr) | 532 |
| Basic static load rating (Cor) | 880 |
| Fatigue load limit (Pu) | 85 |
| Reference speed | 1800 r/min |
| Limiting speed | 2200 r/min |
| Mass | 9.55 kg |
| Limiting value (e) | 0.33 |
| Axial load factor (Y) | 1.8 |
| Axial load factor (Y0) | 1 |
| Maximum diameter of shaft abutment (da) | 196 mm |
| Minimum diameter of shaft abutment (db) | 195 mm |
| Minimum diameter of housing abutment (Da) | 240 mm |
| Maximum diameter of housing abutment (Da) | 250 mm |
| Minimum diameter of housing abutment (Db) | 251 mm |
| Minimum width of space required in housing on large side face (C | 9 mm |
| Minimum width of space required in housing on small side face (C | 12.5 mm |
| Maximum Radius of shaft fillet (ra) | 3.3 mm |
| Maximum Radius of housing fillet (rb) | 3.3 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
