LS85110
Needle Roller Thrust Bearings

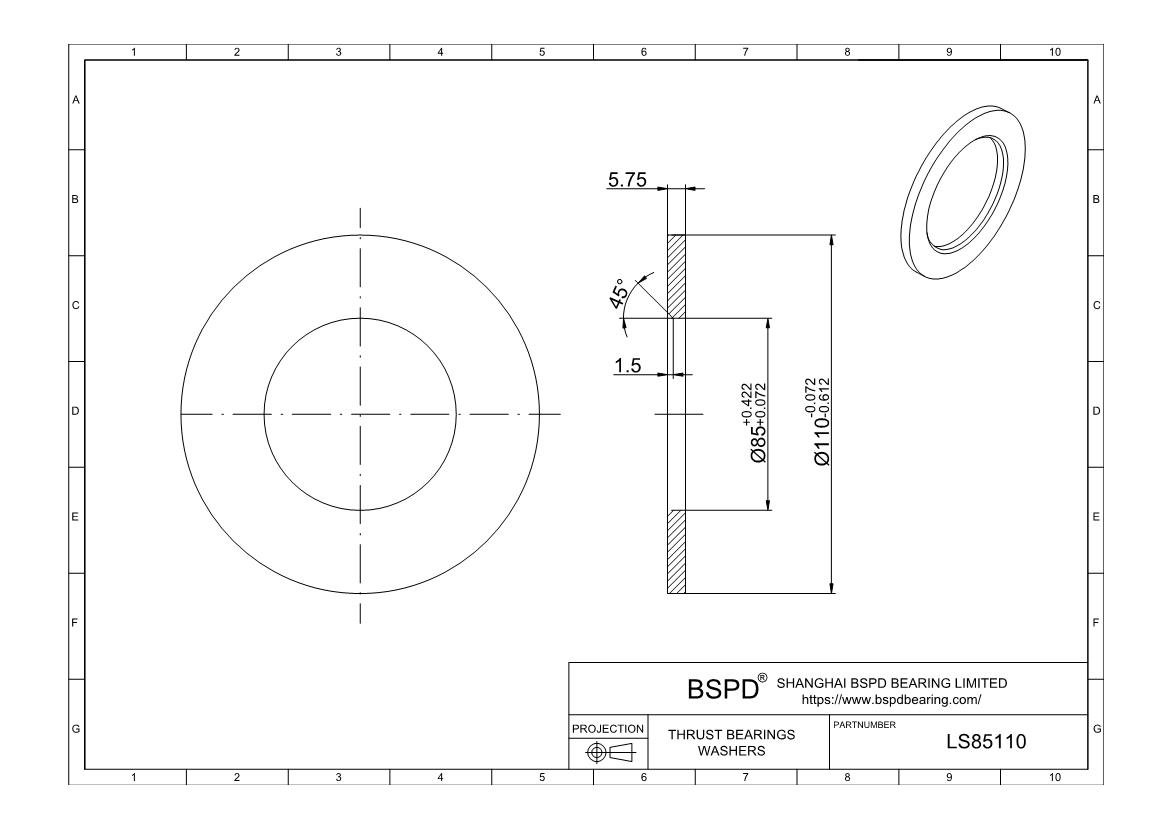

Dimensions: Bore (Inner) Diameter: 85 mm； Outer Diameter: 110 mm； Width (Thickness): 5.75 mm;
REQUEST FOR QUOTE
Product Attributes
| System of Measurement | Metric |
| Part Number | LS85110 |
| ID | 85mm |
| ID Tolerance | 0.072mm to 0.422mm |
| OD | 110mm |
| OD Tolerance | -0.612mm to -0.072mm |
| Thickness | 5.75mm |
| Material | Steel |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| Weight (grams) | 151 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings LS85110 ? Needle Roller Thrust Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
