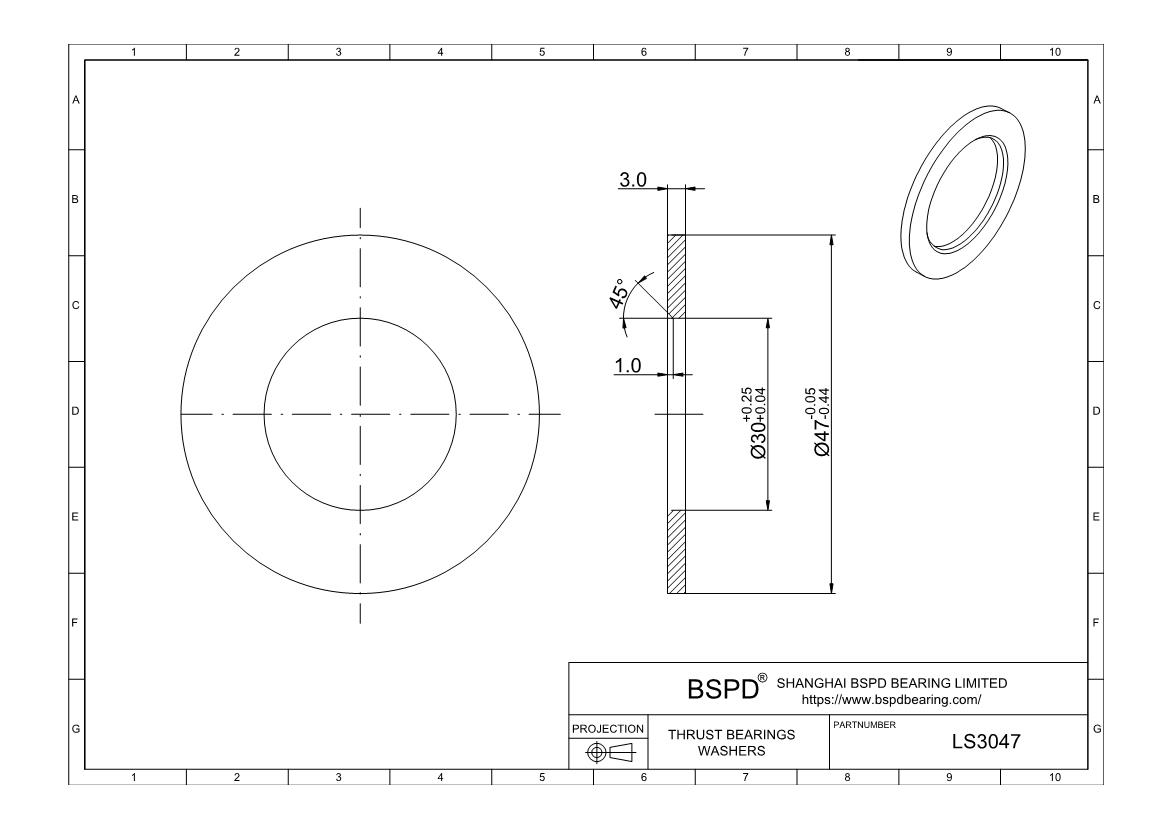

LS3047
Needle Roller Thrust Bearings
Dimensions: Bore (Inner) Diameter: 30 mm； Outer Diameter: 47 mm； Width (Thickness): 3 mm;
REQUEST FOR QUOTE
Product Attributes
| System of Measurement | Metric |
| Part Number | LS3047 |
| ID | 30mm |
| ID Tolerance | 0.04mm to 0.25mm |
| OD | 47mm |
| OD Tolerance | -0.440mm to -0.05mm |
| Thickness | 3mm |
| Material | Steel |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| Weight (grams) | 20 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings LS3047 ? Needle Roller Thrust Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
