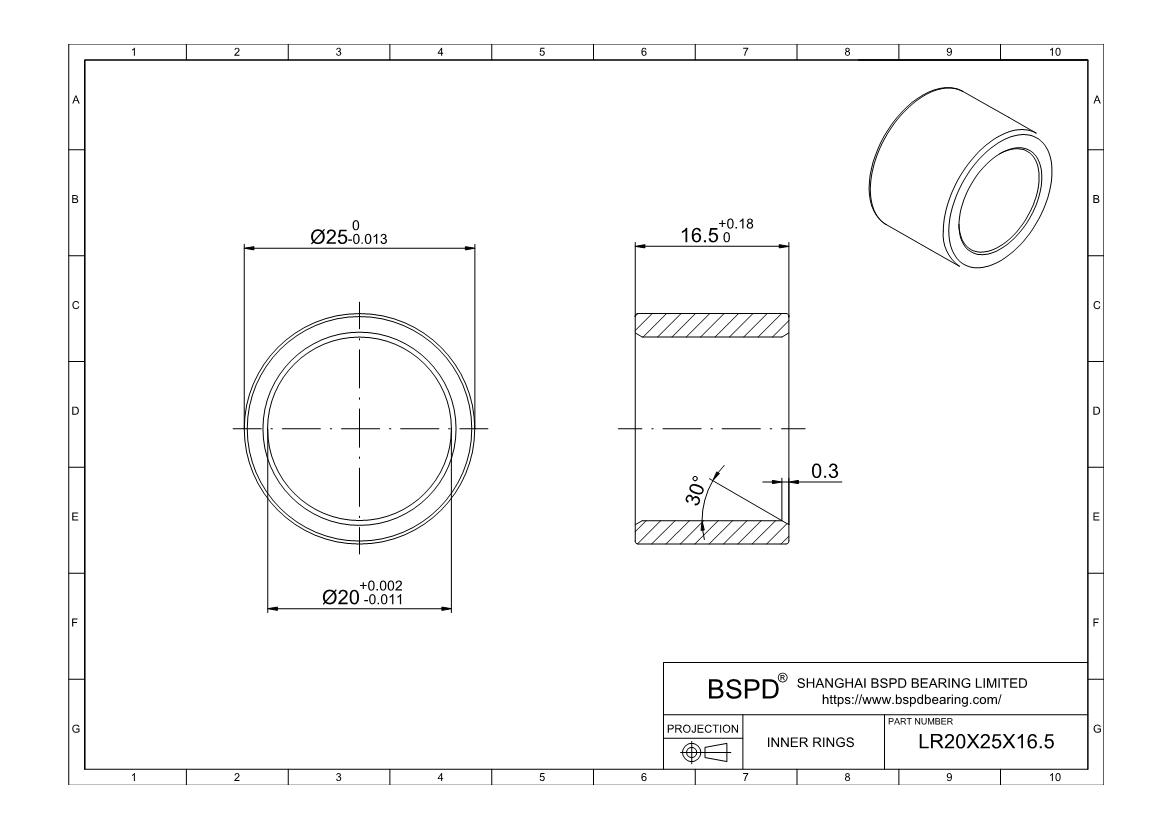

LR20X25X16.5
Inner Rings
Dimensions: Bore (Inner) Diameter: 20 mm； Outer Diameter: 25 mm； Width (Thickness): 16.5 mm;
REQUEST FOR QUOTE
Product Attributes
| System of Measurement | Metric |
| Part Number | LR20X25X16.5 |
| For Shaft Diameter | 20 mm |
| Bore Dia (d) | 20 mm |
| Bore Dia Tolerance | -0.011mm to 0.002mm |
| Outer Dia | 25 mm |
| Outer Dia Tolerance | -0.013mm to 0 |
| Width (B) | 16.5 mm |
| Width Tolerance | 0 to 0.18mm |
| rmin | 0.3 mm |
| Chamfer angle | 30° |
| Ring Material | Steel |
| Lubrication | Lubricated |
| RoHS | Compliant |
| Weight (g) | 21.7 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings LR20X25X16.5 ? Inner Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
