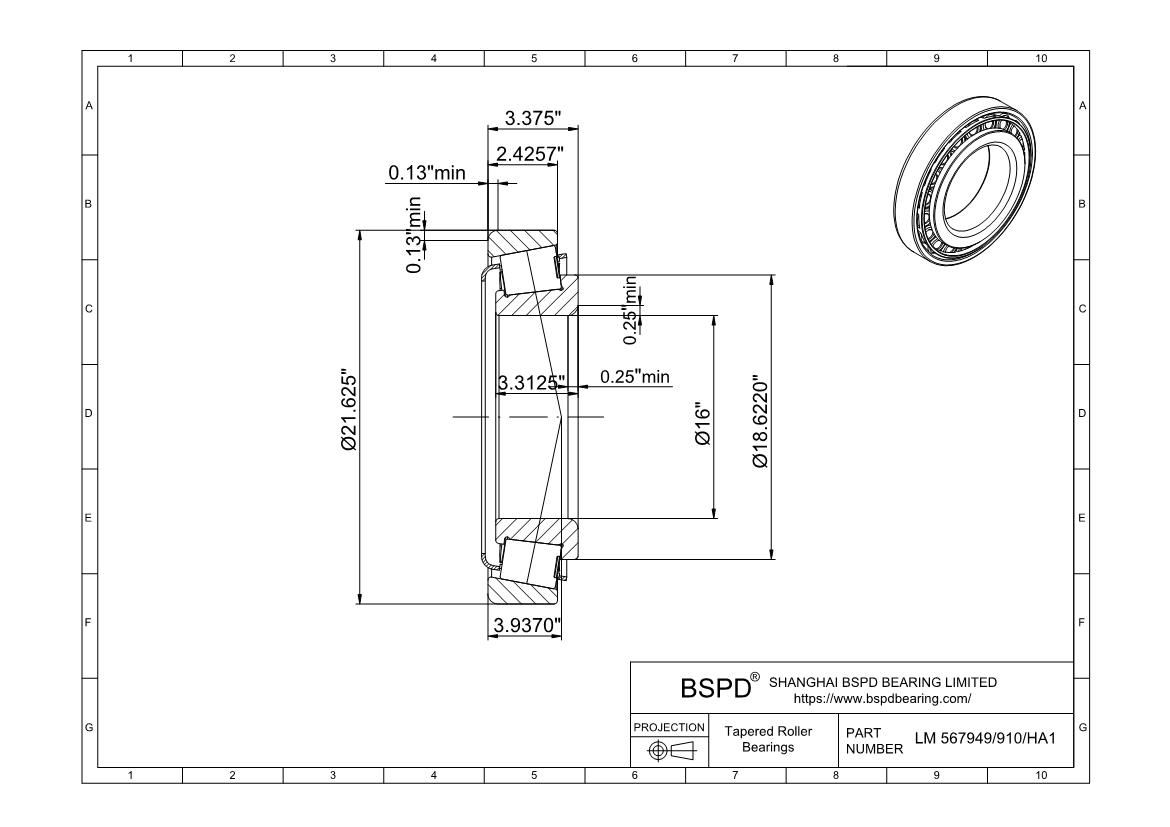

LM 567949/910/HA1
Inch Single Row Tapered Roller Bearings
Dimensions: Bore (Inner) Diameter: 16.0000 "； Outer Diameter: 21.6250 "； Width (Thickness): 3.3750 ";
REQUEST FOR QUOTE
Product Attributes
| Product Number | LM 567949/910/HA1 |
| Bore diameter | 16.0000 " |
| Outside diameter | 21.6250 " |
| Total width | 3.3750 " |
| Shoulder diameter of inner ring | 18.6221 " |
| Widthof inner ring | 3.3125 " |
| Width of outer ring | 2.4257 " |
| Chamfer minimum dimension of inner ring (r1,2) | 6.4 mm |
| Chamfer minimum dimension of outer ring (r3,4) | 3.3 |
| Distance side face to pressure point (a) | 100 |
| Basic dynamic load rating (Cr) | 1467 |
| Basic static load rating (Cor) | 3050 |
| Fatigue load limit (Pu) | 236 |
| Reference speed | 700 r/min |
| Limiting speed | 950 r/min |
| Mass | 53.5 kg |
| Limiting value (e) | 0.4 |
| Axial load factor (Y) | 1.5 |
| Axial load factor (Y0) | 0.8 |
| Maximum diameter of shaft abutment (da) | 434 mm |
| Minimum diameter of shaft abutment (db) | 438 mm |
| Minimum diameter of housing abutment (Da) | 502 mm |
| Maximum diameter of housing abutment (Da) | 532 mm |
| Minimum diameter of housing abutment (Db) | 526 mm |
| Minimum width of space required in housing on large side face (C | 9 mm |
| Minimum width of space required in housing on small side face (C | 23.5 mm |
| Maximum Radius of shaft fillet (ra) | 6 mm |
| Maximum Radius of housing fillet (rb) | 3.1 mm |
