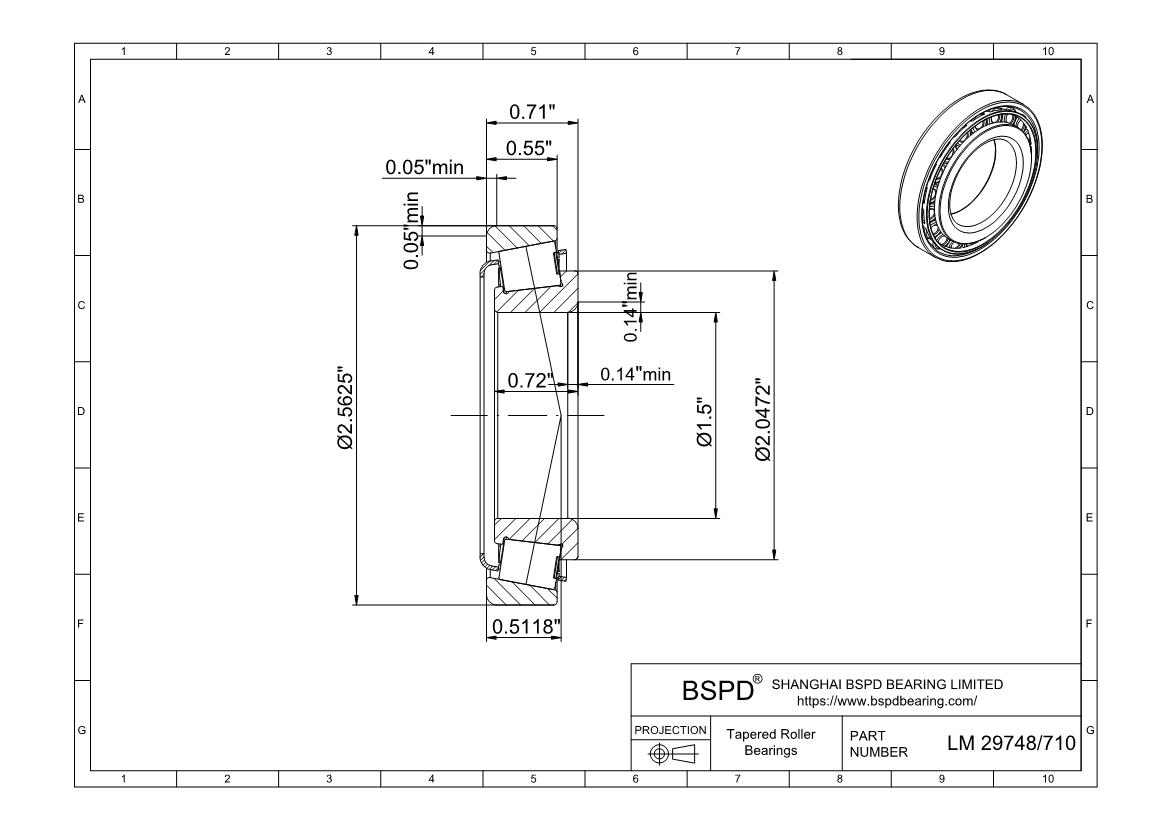

LM 29748/710
Inch Single Row Tapered Roller Bearings
Dimensions: Bore (Inner) Diameter: 1.5000 "； Outer Diameter: 2.5625 "； Width (Thickness): 0.7100 ";
REQUEST FOR QUOTE
Product Attributes
| Product Number | LM 29748/710 |
| Bore diameter | 1.5000 " |
| Outside diameter | 2.5625 " |
| Total width | 0.7100 " |
| Shoulder diameter of inner ring | 2.0472 " |
| Widthof inner ring | 0.7200 " |
| Width of outer ring | 0.5500 " |
| Chamfer minimum dimension of inner ring (r1,2) | 3.6 mm |
| Chamfer minimum dimension of outer ring (r3,4) | 1.3 |
| Distance side face to pressure point (a) | 13 |
| Basic dynamic load rating (Cr) | 53 |
| Basic static load rating (Cor) | 57 |
| Fatigue load limit (Pu) | 6.1 |
| Reference speed | 8000 r/min |
| Limiting speed | 10000 r/min |
| Mass | 0.23 kg |
| Limiting value (e) | 0.33 |
| Axial load factor (Y) | 1.8 |
| Axial load factor (Y0) | 1 |
| Maximum diameter of shaft abutment (da) | 44 mm |
| Minimum diameter of shaft abutment (db) | 51 mm |
| Minimum diameter of housing abutment (Da) | 58 mm |
| Maximum diameter of housing abutment (Da) | 58 mm |
| Minimum diameter of housing abutment (Db) | 61 mm |
| Minimum width of space required in housing on large side face (C | 3 mm |
| Minimum width of space required in housing on small side face (C | 4 mm |
| Maximum Radius of shaft fillet (ra) | 3.6 mm |
| Maximum Radius of housing fillet (rb) | 1.3 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
