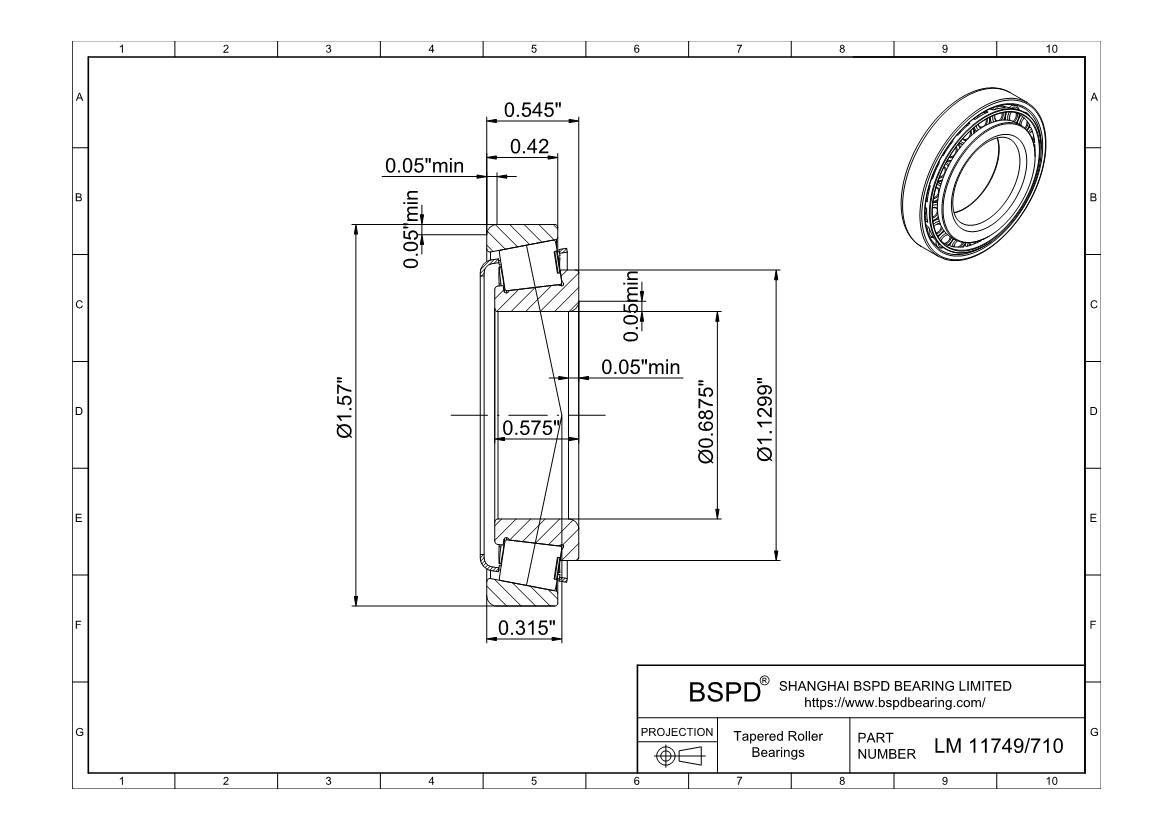

LM 11749/710
Inch Single Row Tapered Roller Bearings
Dimensions: Bore (Inner) Diameter: 0.6875 "； Outer Diameter: 1.5700 "； Width (Thickness): 0.5450 ";
REQUEST FOR QUOTE
Product Attributes
| Product Number | LM 11749/710 |
| Bore diameter | 0.6875 " |
| Outside diameter | 1.5700 " |
| Total width | 0.5450 " |
| Shoulder diameter of inner ring | 1.1299 " |
| Widthof inner ring | 0.5750 " |
| Width of outer ring | 0.4200 " |
| Chamfer minimum dimension of inner ring (r1,2) | 1.3 mm |
| Chamfer minimum dimension of outer ring (r3,4) | 1.3 |
| Distance side face to pressure point (a) | 8 |
| Basic dynamic load rating (Cr) | 26.1 |
| Basic static load rating (Cor) | 20.8 |
| Fatigue load limit (Pu) | 2.12 |
| Reference speed | 15000 r/min |
| Limiting speed | 18000 r/min |
| Mass | 0.082 kg |
| Limiting value (e) | 0.28 |
| Axial load factor (Y) | 2.1 |
| Axial load factor (Y0) | 1.1 |
| Maximum diameter of shaft abutment (da) | 23 mm |
| Minimum diameter of shaft abutment (db) | 24.5 mm |
| Minimum diameter of housing abutment (Da) | 35 mm |
| Maximum diameter of housing abutment (Da) | 34 mm |
| Minimum diameter of housing abutment (Db) | 36 mm |
| Minimum width of space required in housing on large side face (C | 2 mm |
| Minimum width of space required in housing on small side face (C | 3 mm |
| Maximum Radius of shaft fillet (ra) | 1.3 mm |
| Maximum Radius of housing fillet (rb) | 1.3 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
