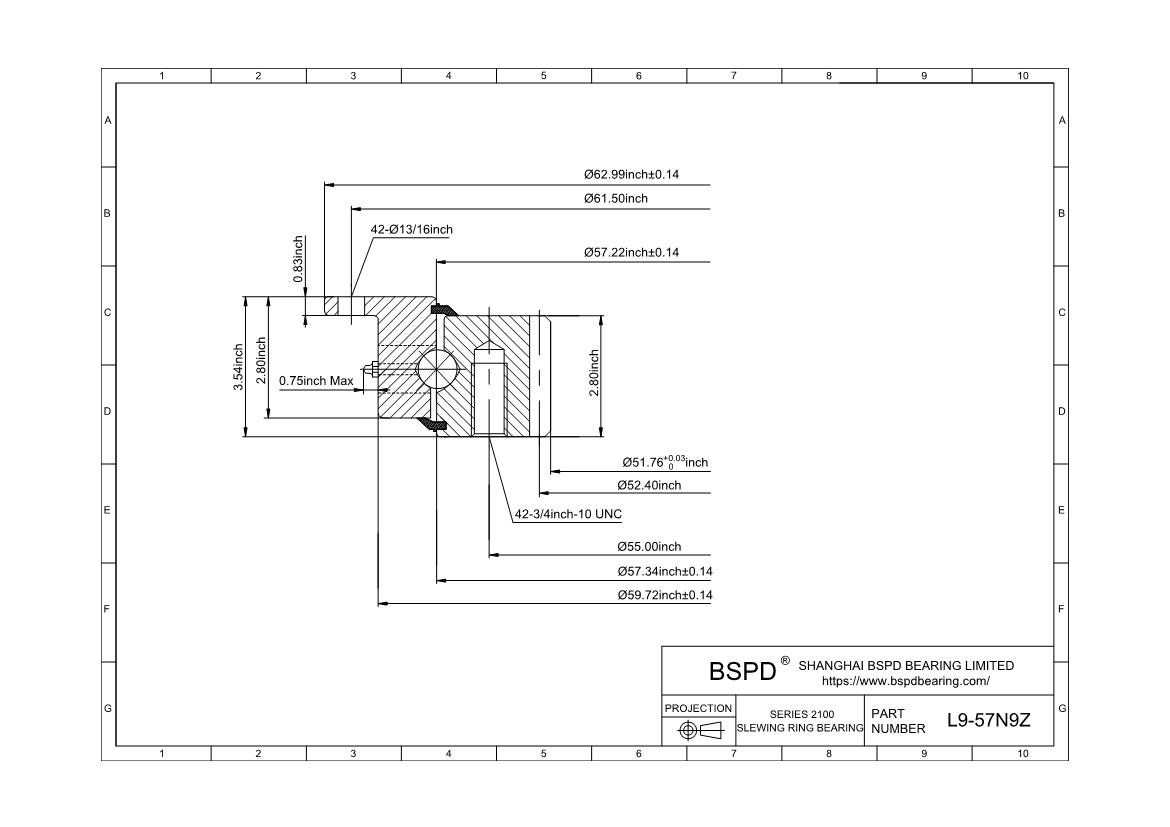

L9-57N9Z
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 51.76"； Outer Diameter: 62.99"； Width (Thickness): 3.54";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | L9-57N9Z |
| Weight(lbs) | 538 |
| Outline Dimensions(inches) | |
| OD | 62.99 |
| ID | 51.76 |
| IO | 57.34 |
| OI | 57.22 |
| IE | - |
| OE | 59.72 |
| Mounting Holes | |
| OBC | 61.5 |
| NO.Holes OBC | 48 |
| IBC | 55 |
| NO.Holes IBC | 48 |
| Gear Data | |
| PD | 52.4 |
| DP20 Stub | 2.5 |
| NO of Teeth | 131 |
| Max.Tangential Toothload | 15400 |
| Mating Pinions | P2.5-5.6D2 P2.5-6.8D2 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings L9-57N9Z ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
