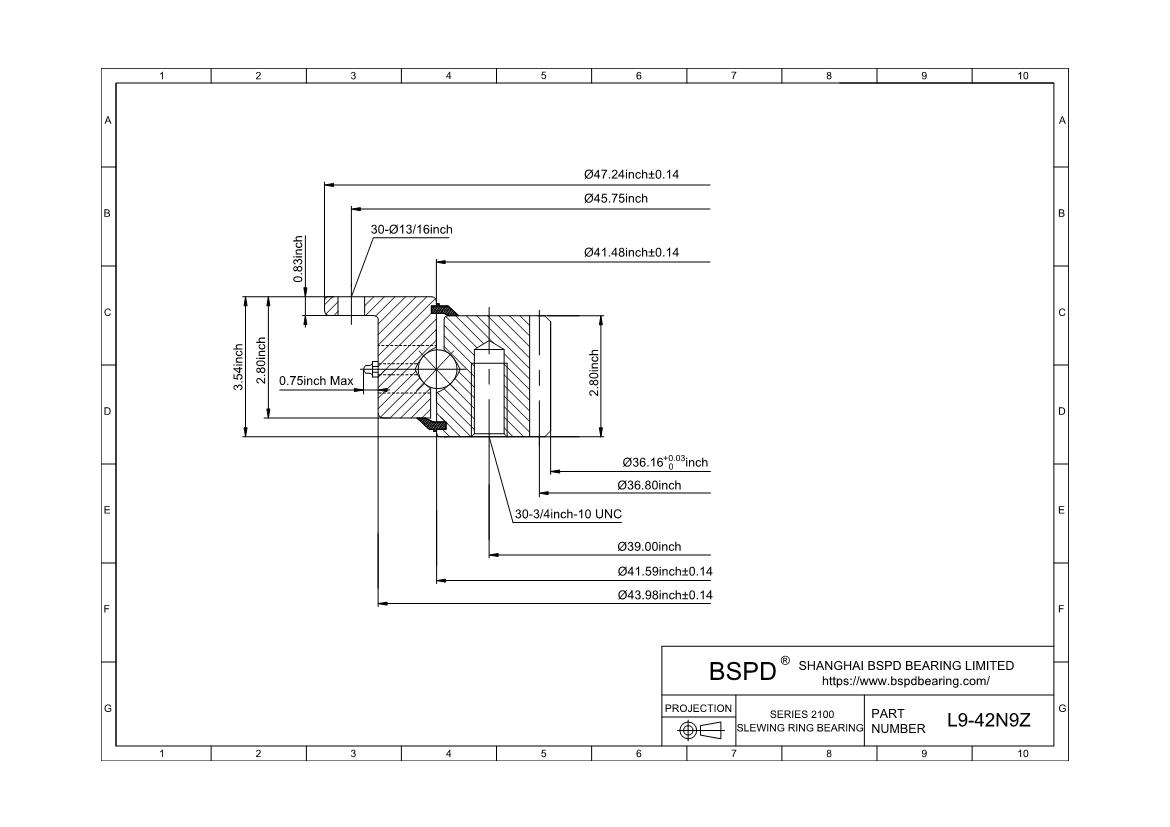

L9-42N9Z
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 36.16"； Outer Diameter: 47.24"； Width (Thickness): 3.54";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | L9-42N9Z |
| Weight(lbs) | 388 |
| Outline Dimensions(inches) | |
| OD | 47.24 |
| ID | 36.16 |
| IO | 41.59 |
| OI | 41.48 |
| IE | - |
| OE | 43.98 |
| Mounting Holes | |
| OBC | 45.75 |
| NO.Holes OBC | 30 |
| IBC | 39 |
| NO.Holes IBC | 30 |
| Gear Data | |
| PD | 36.8 |
| DP20 Stub | 2.5 |
| NO of Teeth | 92 |
| Max.Tangential Toothload | 15400 |
| Mating Pinions | P2.5-5.6D2 P2.5-6.8D2 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
