L6-37P9Z
Inch Size Slewing Rings

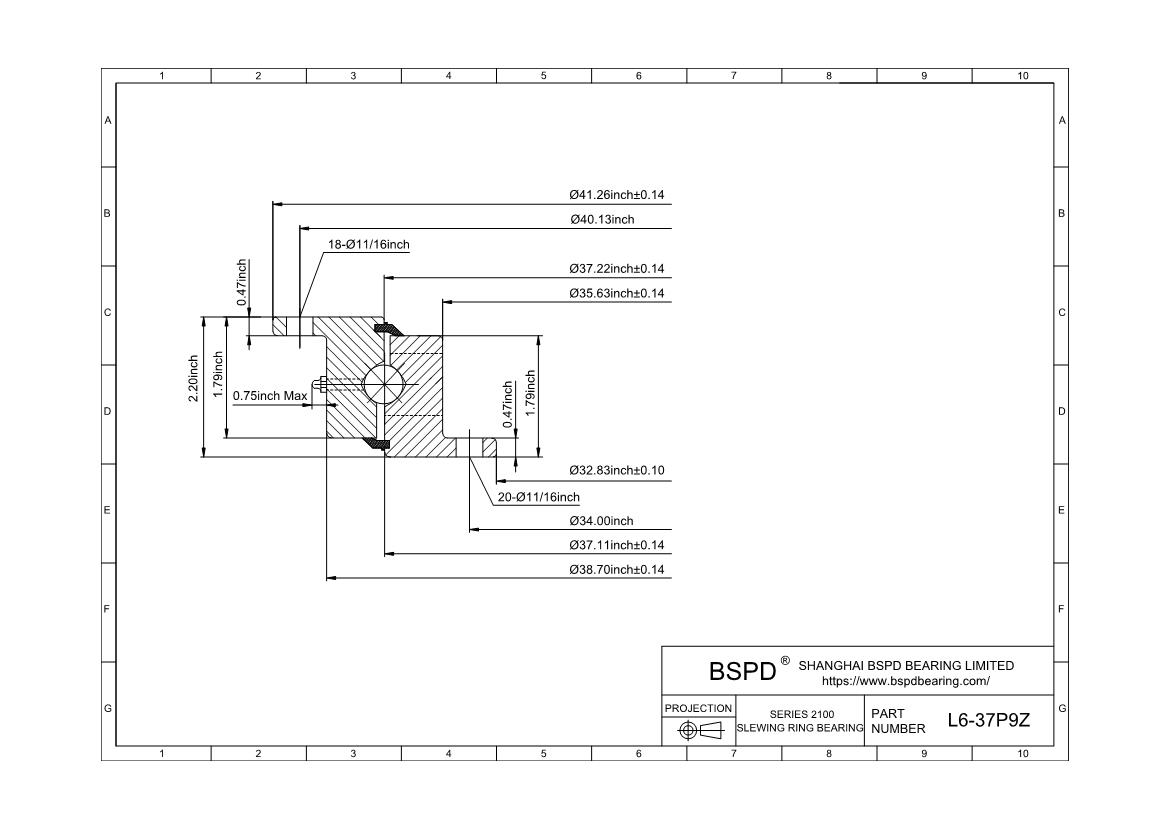

Dimensions: Bore (Inner) Diameter: 32.83"； Outer Diameter: 41.26"； Width (Thickness): 2.20";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | L6-37P9Z |
| Weight(lbs) | 116 |
| Outline Dimensions(inches) | |
| OD | 41.26 |
| ID | 32.83 |
| IO | 37.11 |
| OI | 37.22 |
| IE | 35.63 |
| OE | 38.7 |
| Mounting Holes | |
| OBC | 40.13 |
| NO.Holes OBC | 18 |
| IBC | 34 |
| NO.Holes IBC | 20 |
| Gear Data | |
| PD | |
| DP20 Stub | |
| NO of Teeth | |
| Max.Tangential Toothload | |
| Mating Pinions | P3-4.67D2 P3-5.67D2 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings L6-37P9Z ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
