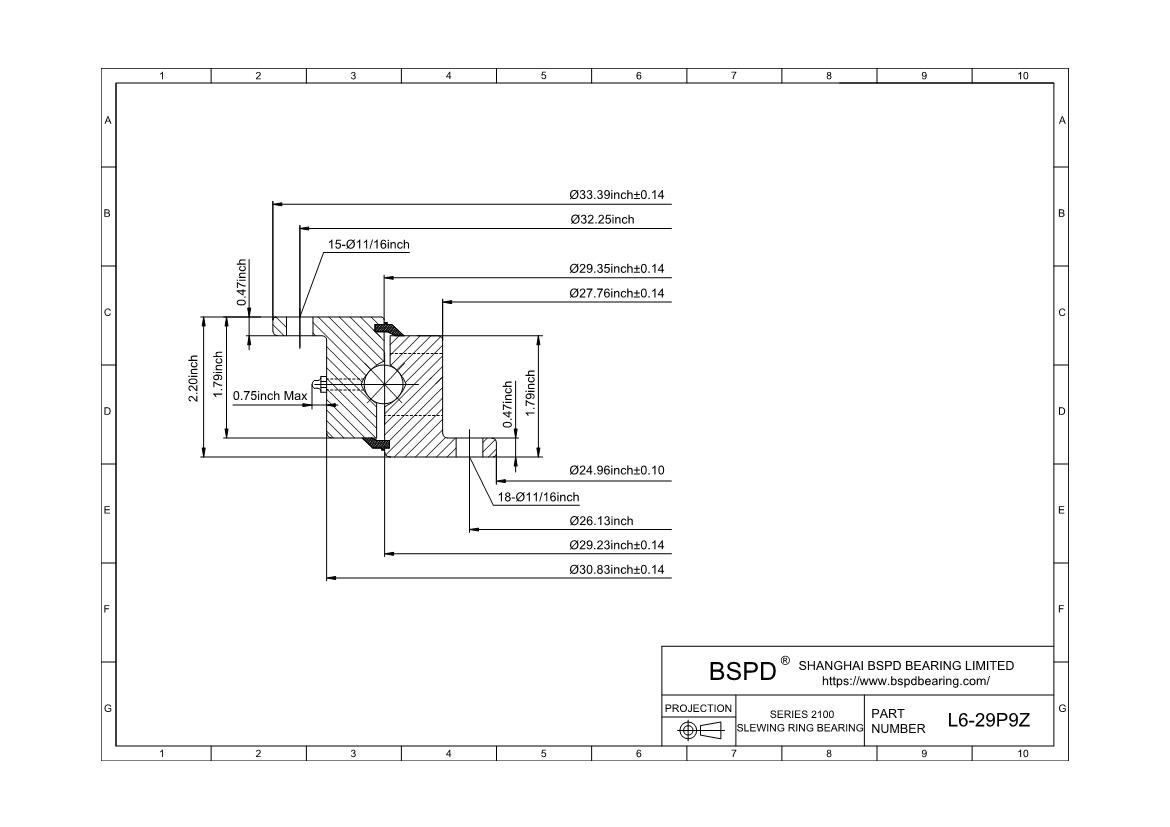

L6-29P9Z
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 24.96"； Outer Diameter: 33.39"； Width (Thickness): 2.20";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | L6-29P9Z |
| Weight(lbs) | 94 |
| Outline Dimensions(inches) | |
| OD | 33.39 |
| ID | 24.96 |
| IO | 29.23 |
| OI | 29.35 |
| IE | 27.76 |
| OE | 30.83 |
| Mounting Holes | |
| OBC | 32.25 |
| NO.Holes OBC | 15 |
| IBC | 26.13 |
| NO.Holes IBC | 18 |
| Gear Data | |
| PD | |
| DP20 Stub | |
| NO of Teeth | |
| Max.Tangential Toothload | |
| Mating Pinions | P4-3.5D2 P4-4.25D2 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings L6-29P9Z ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
