L6-25P9ZD
Inch Size Slewing Rings

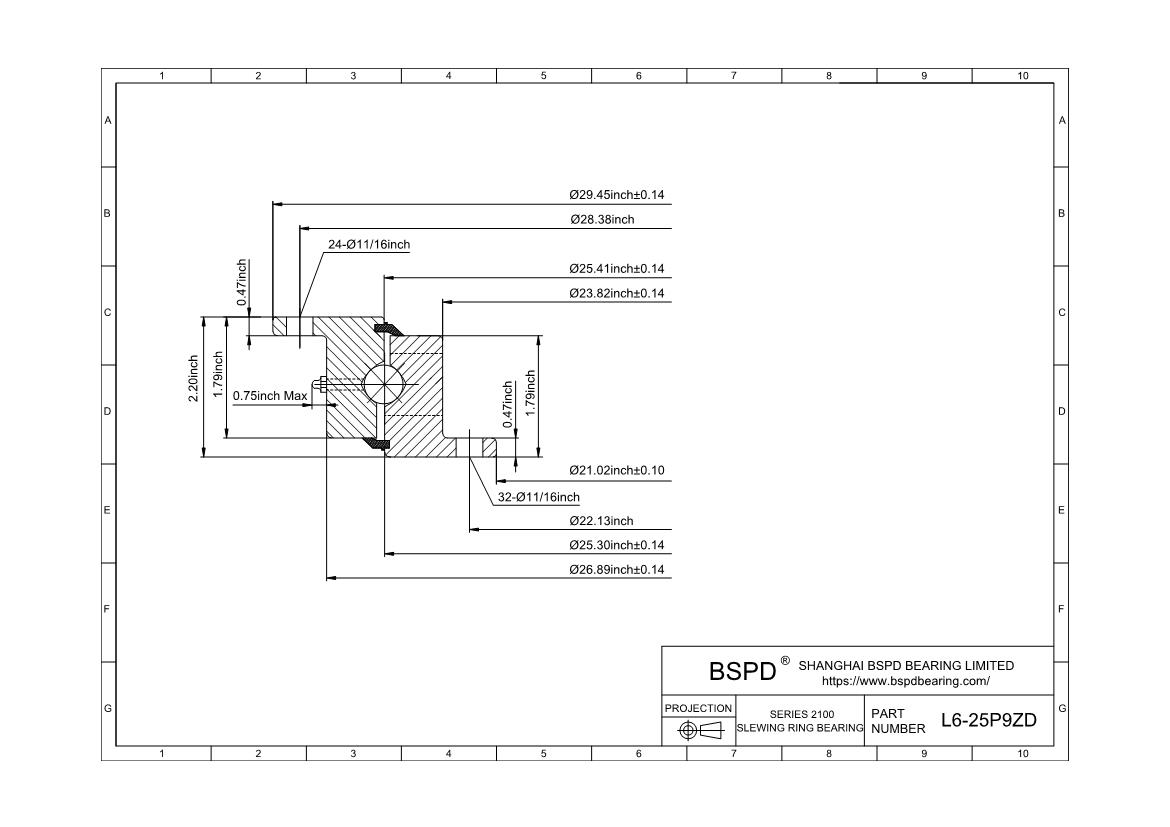

Dimensions: Bore (Inner) Diameter: 21.02"； Outer Diameter: 29.45"； Width (Thickness): 2.20";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | L6-25P9ZD |
| Weight(lbs) | 80 |
| Outline Dimensions(inches) | |
| OD | 29.45 |
| ID | 21.02 |
| IO | 25.3 |
| OI | 25.41 |
| IE | 23.82 |
| OE | 26.89 |
| Mounting Holes | |
| OBC | 28.38 |
| NO.Holes OBC | 24 |
| IBC | 22.13 |
| NO.Holes IBC | 32 |
| Gear Data | |
| PD | |
| DP20 Stub | |
| NO of Teeth | |
| Max.Tangential Toothload | |
| Mating Pinions | P4-3.5D2 P4-4.25D2 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings L6-25P9ZD ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
