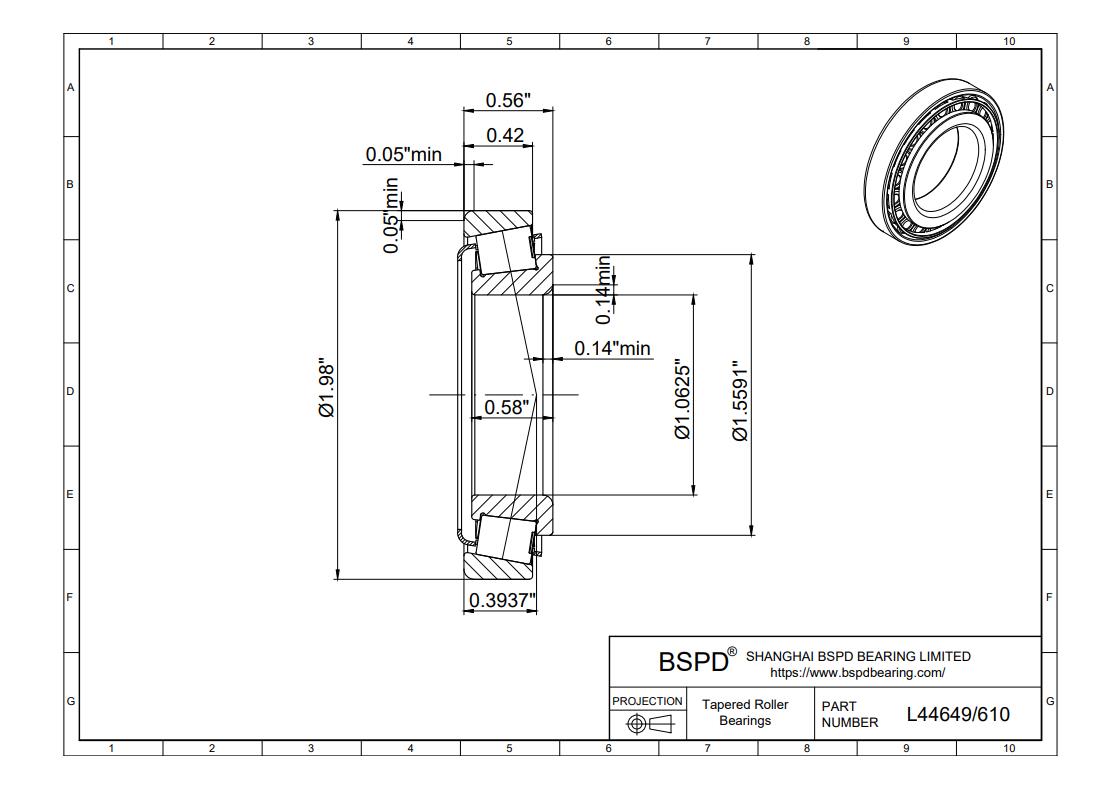

L44649/610
Inch Single Row Tapered Roller Bearings
Dimensions: Bore (Inner) Diameter: 1.0625 "； Outer Diameter: 1.9800 "； Width (Thickness): 0.5600 ";
REQUEST FOR QUOTE
Product Attributes
| Product Number | L44649/610 |
| Bore diameter | 1.0625 " |
| Outside diameter | 1.9800 " |
| Total width | 0.5600 " |
| Shoulder diameter of inner ring | 1.5591 " |
| Widthof inner ring | 0.5800 " |
| Width of outer ring | 0.4200 " |
| Chamfer minimum dimension of inner ring (r1,2) | 3.5 mm |
| Chamfer minimum dimension of outer ring (r3,4) | 1.3 |
| Distance side face to pressure point (a) | 10 |
| Basic dynamic load rating (Cr) | 32 |
| Basic static load rating (Cor) | 30 |
| Fatigue load limit (Pu) | 3 |
| Reference speed | 11000 r/min |
| Limiting speed | 13000 r/min |
| Mass | 0.12 kg |
| Limiting value (e) | 0.37 |
| Axial load factor (Y) | 1.6 |
| Axial load factor (Y0) | 0.9 |
| Maximum diameter of shaft abutment (da) | 33 mm |
| Minimum diameter of shaft abutment (db) | 38.5 mm |
| Minimum diameter of housing abutment (Da) | 44 mm |
| Maximum diameter of housing abutment (Da) | 44 mm |
| Minimum diameter of housing abutment (Db) | 47 mm |
| Minimum width of space required in housing on large side face (C | 2 mm |
| Minimum width of space required in housing on small side face (C | 3.5 mm |
| Maximum Radius of shaft fillet (ra) | 3.5 mm |
| Maximum Radius of housing fillet (rb) | 1.3 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Tapered roller bearings L44649/610 ? Inch Single Row Tapered Roller Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
