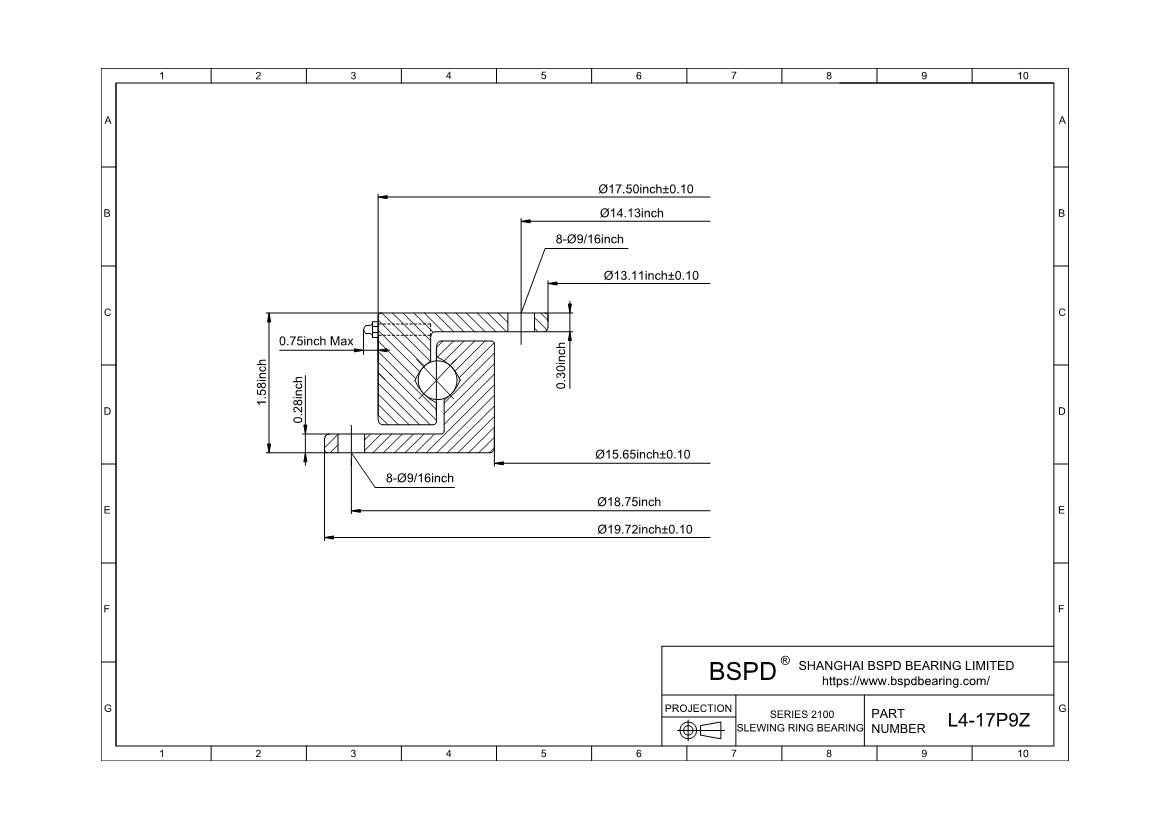

L4-17P9Z
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 13.11"； Outer Diameter: 19.72"； Width (Thickness): 1.58";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | L4-17P9Z |
| Weight(lbs) | 40 |
| Outline Dimensions(inches) | |
| OD | 19.72 |
| ID | 13.11 |
| IO | 17.5 |
| OI | 15.65 |
| IE | - |
| OE | - |
| Mounting Holes | |
| OBC | 18.75 |
| NO.Holes OBC | 8 |
| IBC | 14.13 |
| NO.Holes IBC | 8 |
| Gear Data | |
| PD | |
| DP20 Stub | |
| NO of Teeth | |
| Max.Tangential Toothload | |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings L4-17P9Z ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
