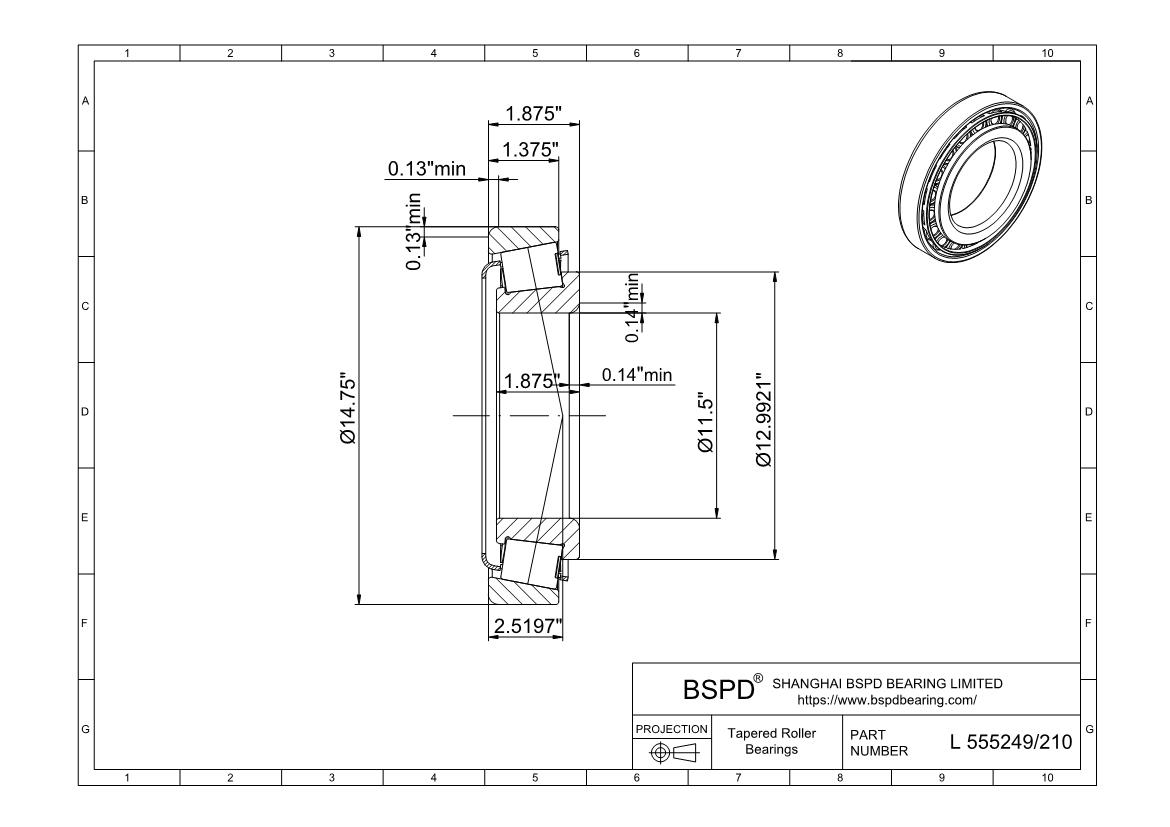

L 555249/210
Inch Single Row Tapered Roller Bearings
Dimensions: Bore (Inner) Diameter: 11.5000 "； Outer Diameter: 14.7500 "； Width (Thickness): 1.8750 ";
REQUEST FOR QUOTE
Product Attributes
| Product Number | L 555249/210 |
| Bore diameter | 11.5000 " |
| Outside diameter | 14.7500 " |
| Total width | 1.8750 " |
| Shoulder diameter of inner ring | 12.9921 " |
| Widthof inner ring | 1.8750 " |
| Width of outer ring | 1.3750 " |
| Chamfer minimum dimension of inner ring (r1,2) | 3.5 mm |
| Chamfer minimum dimension of outer ring (r3,4) | 3.3 |
| Distance side face to pressure point (a) | 64 |
| Basic dynamic load rating (Cr) | 539 |
| Basic static load rating (Cor) | 1140 |
| Fatigue load limit (Pu) | 98 |
| Reference speed | 1200 r/min |
| Limiting speed | 1500 r/min |
| Mass | 12.5 kg |
| Limiting value (e) | 0.4 |
| Axial load factor (Y) | 1.5 |
| Axial load factor (Y0) | 0.8 |
| Maximum diameter of shaft abutment (da) | 310 mm |
| Minimum diameter of shaft abutment (db) | 310 mm |
| Minimum diameter of housing abutment (Da) | 350 mm |
| Maximum diameter of housing abutment (Da) | 358 mm |
| Minimum diameter of housing abutment (Db) | 361 mm |
| Minimum width of space required in housing on large side face (C | 9 mm |
| Minimum width of space required in housing on small side face (C | 12.5 mm |
| Maximum Radius of shaft fillet (ra) | 3.5 mm |
| Maximum Radius of housing fillet (rb) | 3.3 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
