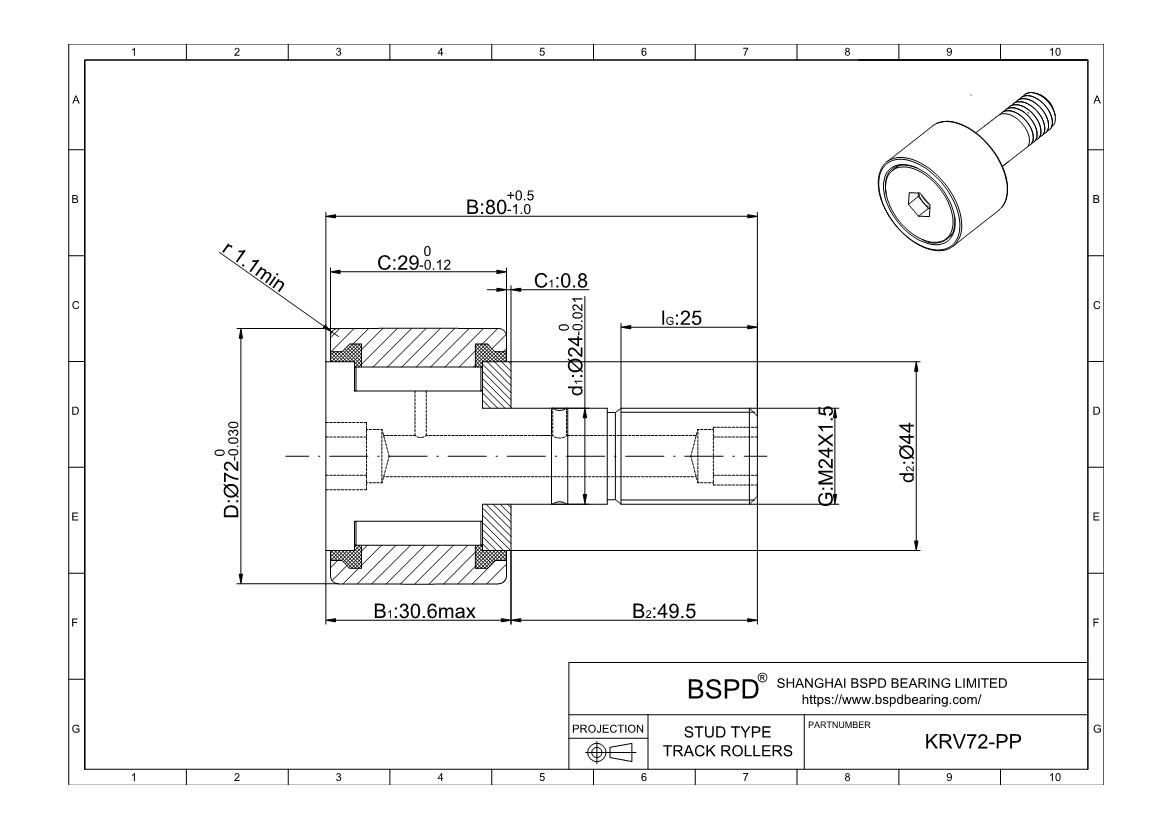

KRV72-PP
Cam Followers, Yoke Type & Stud Type Track Rollers
Dimensions: Roller Dia: 72 mm； Roller Width: ； Stud Dia: 24 mm； Stud Length: ；
REQUEST FOR QUOTE
Product Attributes
| Guide Roller Type | Track |
| Track Roller Type | Round |
| For Load Direction | Radial |
| Roller Profile | Flat |
| Roller Style | Threaded Stud |
| Roller Material | Steel |
| D | 72 mm |
| d1 | 24 mm |
| B | 80 mm |
| B1 max | 30,6 mm |
| B2 | 49.5 mm |
| C | 29 mm |
| C1 | 0,8 mm |
| d2 | 44 mm |
| G | M24x1,5 |
| IG | 25 mm |
| rmin | 1.1 mm |
| Cr w | 36500 N |
| Cur w | 12600 N |
| Maximum Speed | 1100 1/min |
| Temperature Range | -20 to 110 °C |
| Shaft Mount Type | Press Fit |
| Bearing Type | Needle Roller |
| With Seal | Yes |
| Lubrication | Required |
| RoHS | Compliant |
| Weight (g) | 1027 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings KRV72-PP ? Cam Followers, Yoke Type & Stud Type Track Rollers Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
