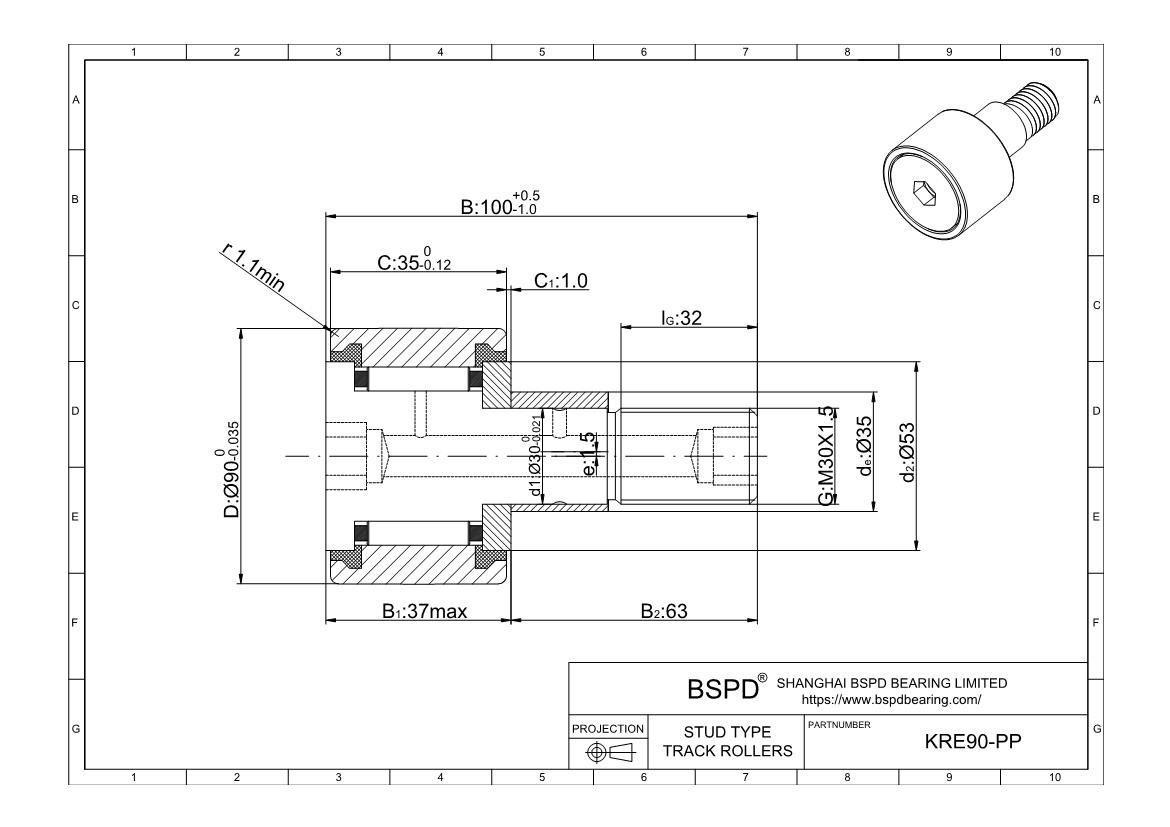

KRE90-PP
Cam Followers, Yoke Type & Stud Type Track Rollers
Dimensions: Roller Dia: 90 mm； Roller Width: 35 mm； Stud Dia: 30 mm； Stud Length: 63 mm；
REQUEST FOR QUOTE
Product Attributes
| Guide Roller Type | Track |
| Track Roller Type | Round |
| For Load Direction | Radial |
| Roller Profile | Flat |
| Roller Style | Threaded Stud |
| Roller Material | Steel |
| D | 90 mm |
| de | 35 mm |
| B | 100 mm |
| B1 max | 37 mm |
| B2 | 63 mm |
| C | 35 mm |
| C1 | 1 mm |
| d1 | 30 mm |
| d2 | 53 mm |
| e | 1.5 mm |
| G | M30x1,5 |
| IG | 32 mm |
| rmin | 1.1 mm |
| Cr w | 40500 N |
| Cur w | 11700 N |
| Maximum Speed | 1300 1/min |
| Temperature Range | -20 to 110 °C |
| Shaft Mount Type | Press Fit |
| Bearing Type | Needle Roller |
| With Seal | Yes |
| Lubrication | Required |
| RoHS | Compliant |
| Weight (g) | 2032 |
Print PDF
Request a 3D CAD Model
