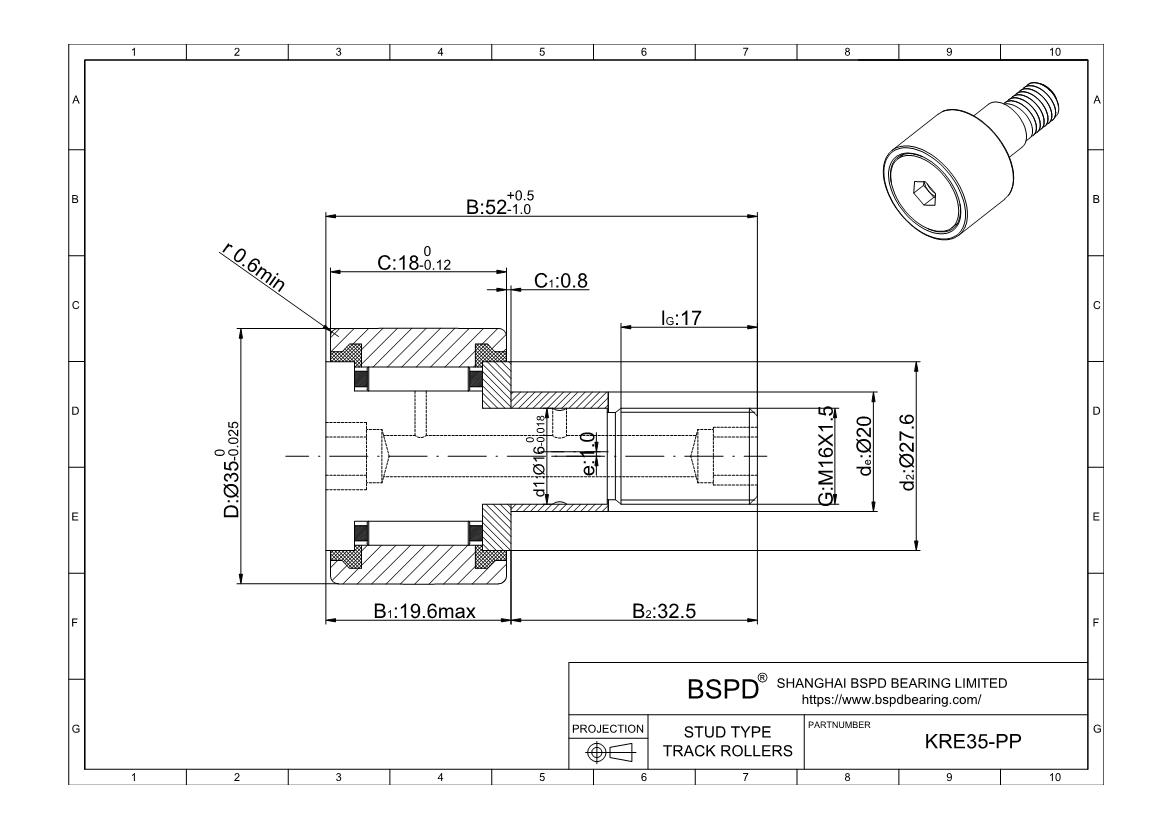

KRE35-PP
Cam Followers, Yoke Type & Stud Type Track Rollers
Dimensions: Roller Dia: 35 mm； Roller Width: 18 mm； Stud Dia: 16 mm； Stud Length: 32.5 mm；
REQUEST FOR QUOTE
Product Attributes
| Guide Roller Type | Track |
| Track Roller Type | Round |
| For Load Direction | Radial |
| Roller Profile | Flat |
| Roller Style | Threaded Stud |
| Roller Material | Steel |
| D | 35 mm |
| de | 20 mm |
| B | 52 mm |
| B1 max | 19,6 mm |
| B2 | 32.5 mm |
| C | 18 mm |
| C1 | 0,8 mm |
| d1 | 16 mm |
| d2 | 27,6 mm |
| e | 1 mm |
| G | M16x1,5 |
| IG | 17 mm |
| rmin | 0.6 mm |
| Cr w | 9700 N |
| Cur w | 1830 N |
| Maximum Speed | 3600 1/min |
| Temperature Range | -20 to 110 °C |
| Shaft Mount Type | Press Fit |
| Bearing Type | Needle Roller |
| With Seal | Yes |
| Lubrication | Required |
| RoHS | Compliant |
| Weight (g) | 177 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings KRE35-PP ? Cam Followers, Yoke Type & Stud Type Track Rollers Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
