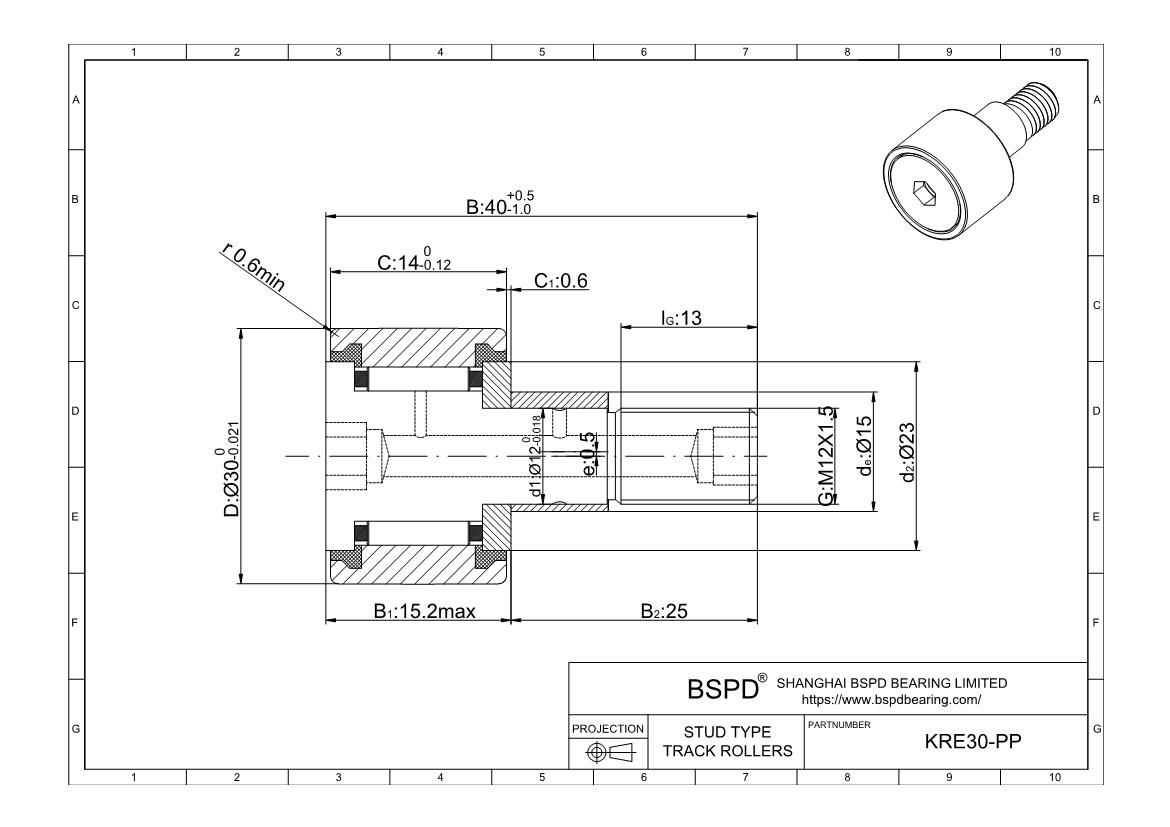

KRE30-PP
Cam Followers, Yoke Type & Stud Type Track Rollers
Dimensions: Roller Dia: 30 mm； Roller Width: 14 mm； Stud Dia: 12 mm； Stud Length: 25 mm；
REQUEST FOR QUOTE
Product Attributes
| Guide Roller Type | Track |
| Track Roller Type | Round |
| For Load Direction | Radial |
| Roller Profile | Flat |
| Roller Style | Threaded Stud |
| Roller Material | Steel |
| D | 30 mm |
| de | 15 mm |
| B | 40 mm |
| B1 max | 15,2 mm |
| B2 | 25 mm |
| C | 14 mm |
| C1 | 0,6 mm |
| d1 | 12 mm |
| d2 | 23 mm |
| e | 0.5 mm |
| G | M12x1,5 |
| IG | 13 mm |
| rmin | 0.6 mm |
| Cr w | 6800 N |
| Cur w | 1220 N |
| Maximum Speed | 5500 1/min |
| Temperature Range | -20 to 110 °C |
| Shaft Mount Type | Press Fit |
| Bearing Type | Needle Roller |
| With Seal | Yes |
| Lubrication | Required |
| RoHS | Compliant |
| Weight (g) | 93 |
Print PDF
Request a 3D CAD Model
