KRE22-PP Cam Followers, Yoke Type & Stud Type Track Rollers
Dimensions: Roller Dia: 22 mm； Roller Width: 12 mm； Stud Dia: 10 mm； Stud Length: 23 mm；

KRE22-PP
REQUEST FOR QUOTE
* *
Send
Product Attributes
Guide Roller Type Track
Track Roller Type Round
For Load Direction Radial
Roller Profile Flat
Roller Style Threaded Stud
Roller Material Steel

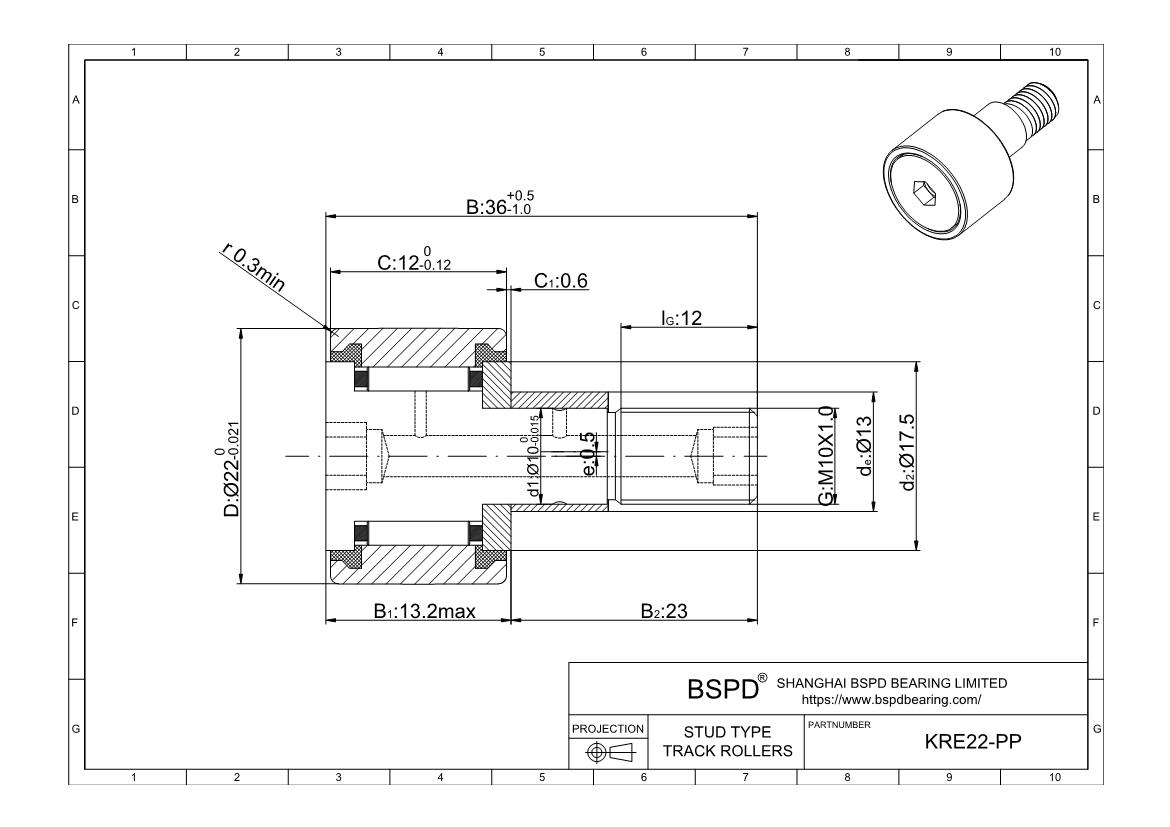

D 22 mm
de 13 mm
B 36 mm
B1 max 13,2 mm
B2 23 mm
C 12 mm
C1 0,6 mm
d1 10 mm
d2 17,5 mm
e 0.5 mm
G M10x1
IG 12 mm
rmin 0.3 mm
Cr w 4550 N
Cur w 730 N
Maximum Speed 8000 1/min
Temperature Range -20 to 110 °C
Shaft Mount Type Press Fit
Bearing Type Needle Roller
With Seal Yes
Lubrication Required
RoHS Compliant
Weight (g) 47
KRE22-PP
