KRE19-PP
Cam Followers, Yoke Type & Stud Type Track Rollers

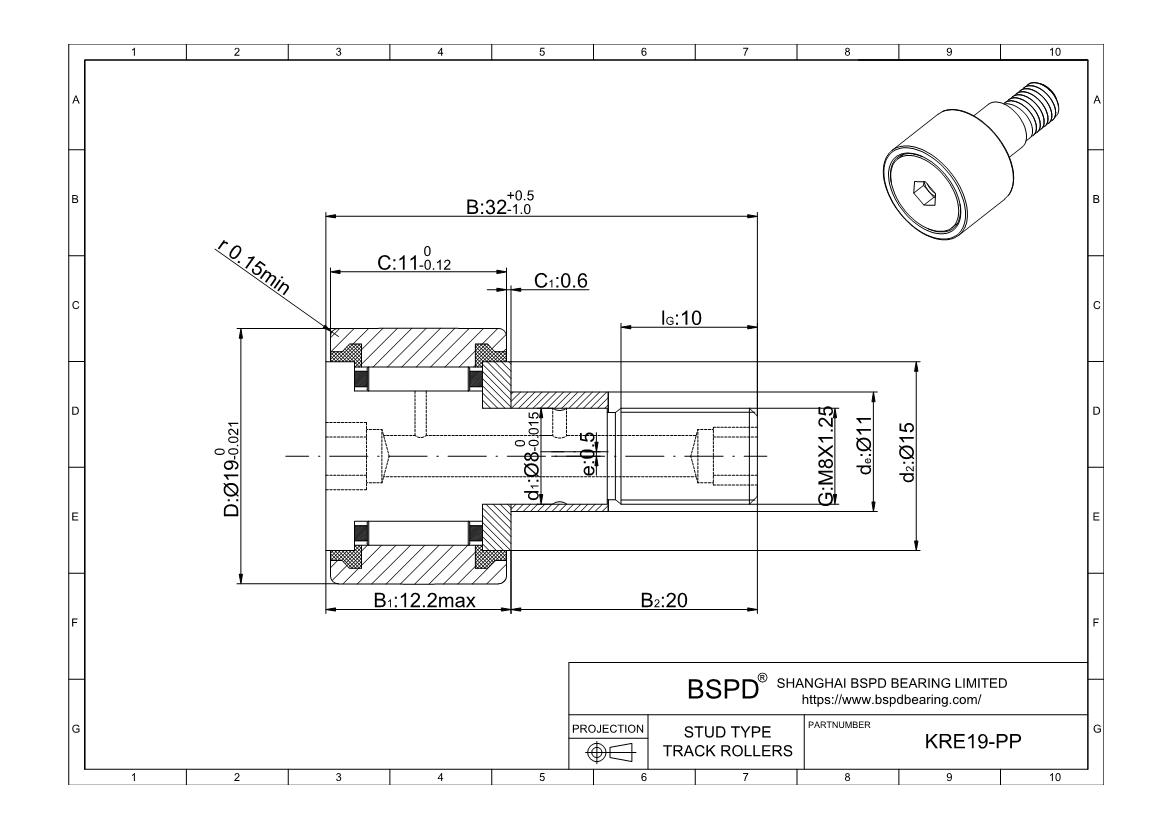

Dimensions: Roller Dia: 19 mm； Roller Width: 11 mm； Stud Dia: 8 mm； Stud Length: 20 mm；
REQUEST FOR QUOTE
Product Attributes
| Guide Roller Type | Track |
| Track Roller Type | Round |
| For Load Direction | Radial |
| Roller Profile | Flat |
| Roller Style | Threaded Stud |
| Roller Material | Steel |
| D | 19 mm |
| de | 11 mm |
| B | 32 mm |
| Projection of lubrication nipple | 1.5 mm |
| B1 max | 12,2 mm |
| B2 | 20 mm |
| C | 11 mm |
| C1 | 0,6 mm |
| d1 | 8 mm |
| d2 | 15 mm |
| e | 0.5 mm |
| G | M8 (x1,25) |
| IG | 10 mm |
| rmin | 0.15 mm |
| Cr w | 3500 N |
| Cur w | 540 N |
| Maximum Speed | 11000 1/min |
| Temperature Range | -20 to 110 °C |
| Shaft Mount Type | Press Fit |
| Bearing Type | Needle Roller |
| With Seal | Yes |
| Lubrication | Required |
| RoHS | Compliant |
| Weight (g) | 32 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings KRE19-PP ? Cam Followers, Yoke Type & Stud Type Track Rollers Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
