KH-125P
Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 8.625"； Outer Diameter: 16.5"； Width (Thickness): ;
Product Attributes
| Specifications | |
| Part Number | KH-125P |
| Bearing Types | Slewing Ring Bearing |
| Maximum Allowable Gear Tooth Load (Fz) | - |
| Outline Dimensions and Weight | |
| Outside Diameter of Outer Ring (Do) | 16.500" | 419.1mm |
| Outside Diameter of Outer Ring (Do) Tolerance | ±.050" | ±1.27mm |
| Inside Diameter of Inner Ring (di) | 8.625" | 219.08mm |
| Inside Diameter of Inner Ring (di) Tolerance | ±.050" | ±1.27mm |
| Internal Diameter on Outer Ring (Di) | 12.750" | 323.85mm |
| Internal Diameter on Outer Ring (Di) Tolerance | * |
| External Diameter on Inner Ring (do) | 12.250" | 311.15mm |
| External Diameter on Inner Ring (do) Tolerance | * |
| Approximate Weight (G) | 80lbs | 36.287KG |
| Mounting Holes | |
| Bolt Circle in Outer Ring (Lo) | 14.750 " | 374.65mm |

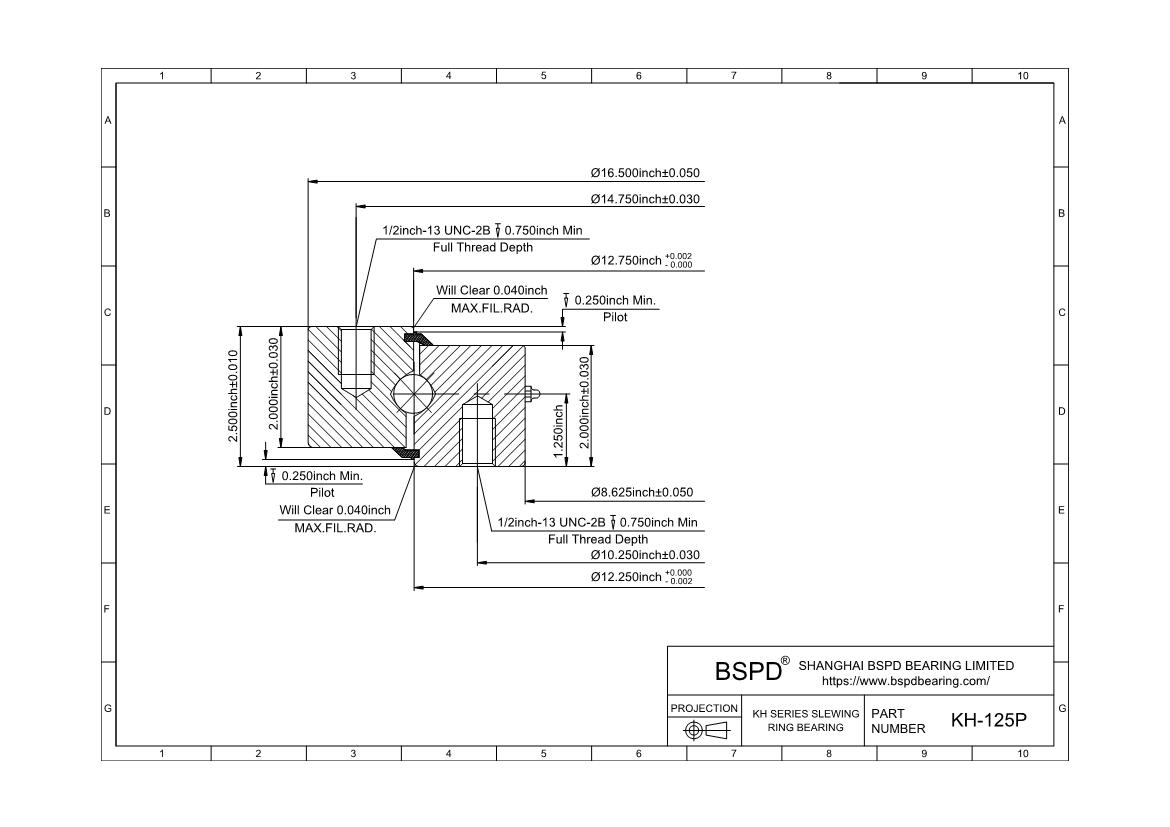

| Size of Hole in Outer Ring | See the picture on the right |
| Number Holes in Outer Ring (no) | 16 |
| Bolt Circle in Inner Ring (Li) | 10.250" | 260.35mm |
| Size of Hole in Inner Ring | See the picture on the right |
| Number Holes in Inner Ring (ni) | 16 |
| Gear Data | |
| Pressure Angle of Gear Teeth (α) | - |
| Pitch diameter of gear(D2) | - |
| Face width of gear teeth(b2) | - |
| Number of gear teeth(z2) | - |
| Dynamic Capacity | |
| Axial Dynamic Capacity | 32,000 |
| Moment Dynamic Capacity | 13,100 |
| Intermittent Capacity | |
| Axial Intermittent Capacity | 60,000 |
| Moment Intermittent Capacity | 25,800 |
