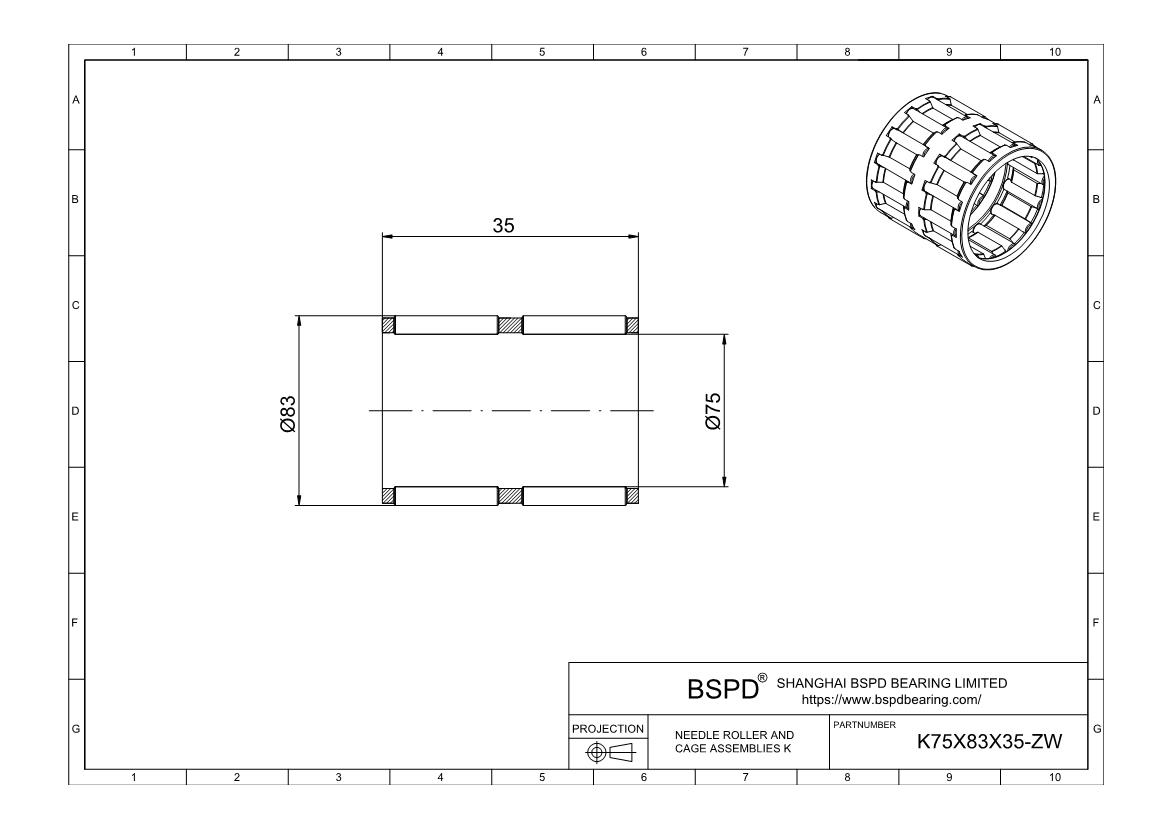

K75X83X35-ZW
Needle Roller And Cage Assemblies
Dimensions: Bore (Inner) Diameter: 75 mm； Outer Diameter: 83 mm； Width (Thickness): 35 mm;
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Needle |
| Construction | Double Row |
| Seal Type | Open |
| System of Measurement | Metric |
| Part Number | K75X83X35-ZW |
| Fw | 75 mm |
| Ew | 83 mm |
| Bc | 35 mm |
| Needle Material | Steel |
| Cage Material | Steel |
| Dynamic Load Rating (Cr) (Newtons) | 63000 N |
| Static Load Rating (Cor) (Newtons) | 147000 N |
| Fatigue Load Rating (Cur) (Newtons) | 20300 N |
| Max Speed (RPM) | 6200 1/min |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| Weight (g) | 182 g |
Print PDF
Request a 3D CAD Model
