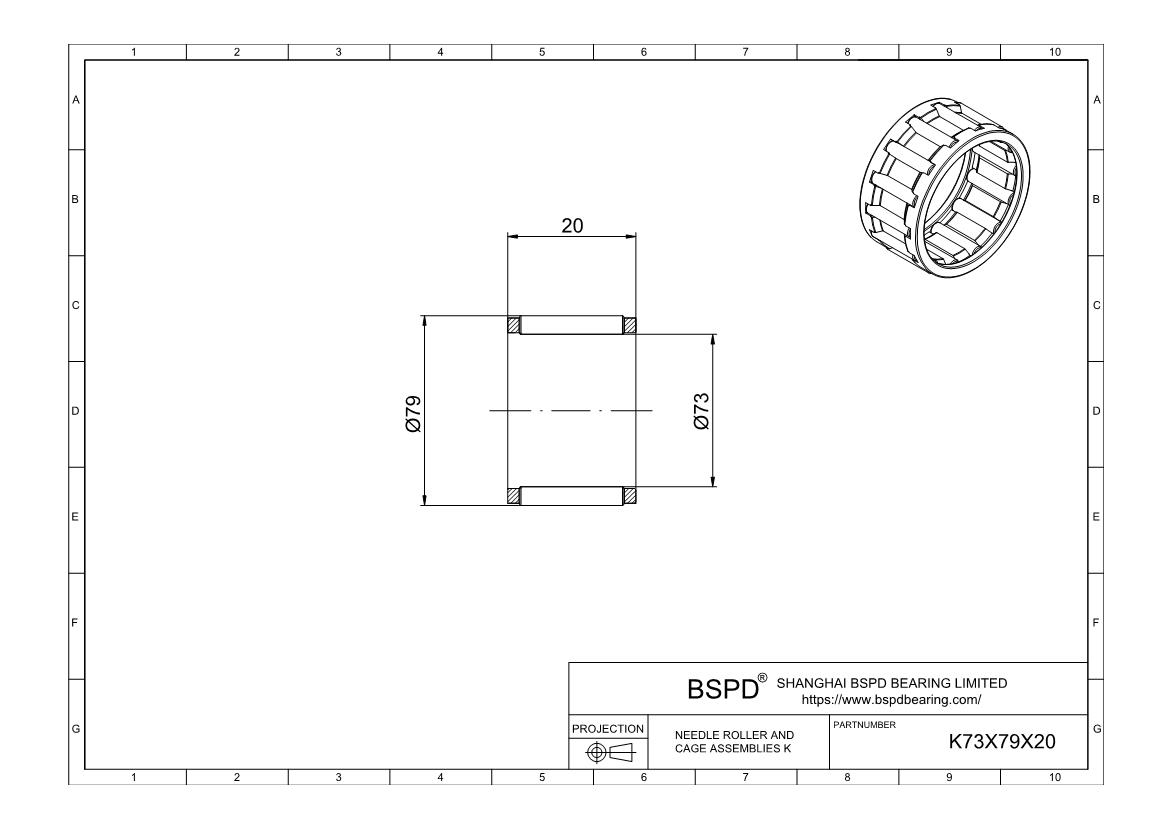

K73X79X20
Needle Roller And Cage Assemblies
Dimensions: Bore (Inner) Diameter: 73 mm； Outer Diameter: 79 mm； Width (Thickness): 20 mm;
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Needle |
| Construction | Single Row |
| Seal Type | Open |
| System of Measurement | Metric |
| Part Number | K73X79X20 |
| Fw | 73 mm |
| Ew | 79 mm |
| Bc | 20 mm |
| Needle Material | Steel |
| Cage Material | Steel |
| Dynamic Load Rating (Cr) (Newtons) | 37000 N |
| Static Load Rating (Cor) (Newtons) | 90000 N |
| Fatigue Load Rating (Cur) (Newtons) | 12000 N |
| Max Speed (RPM) | 6400 1/min |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| Weight (g) | 75 g |
Print PDF
Request a 3D CAD Model
