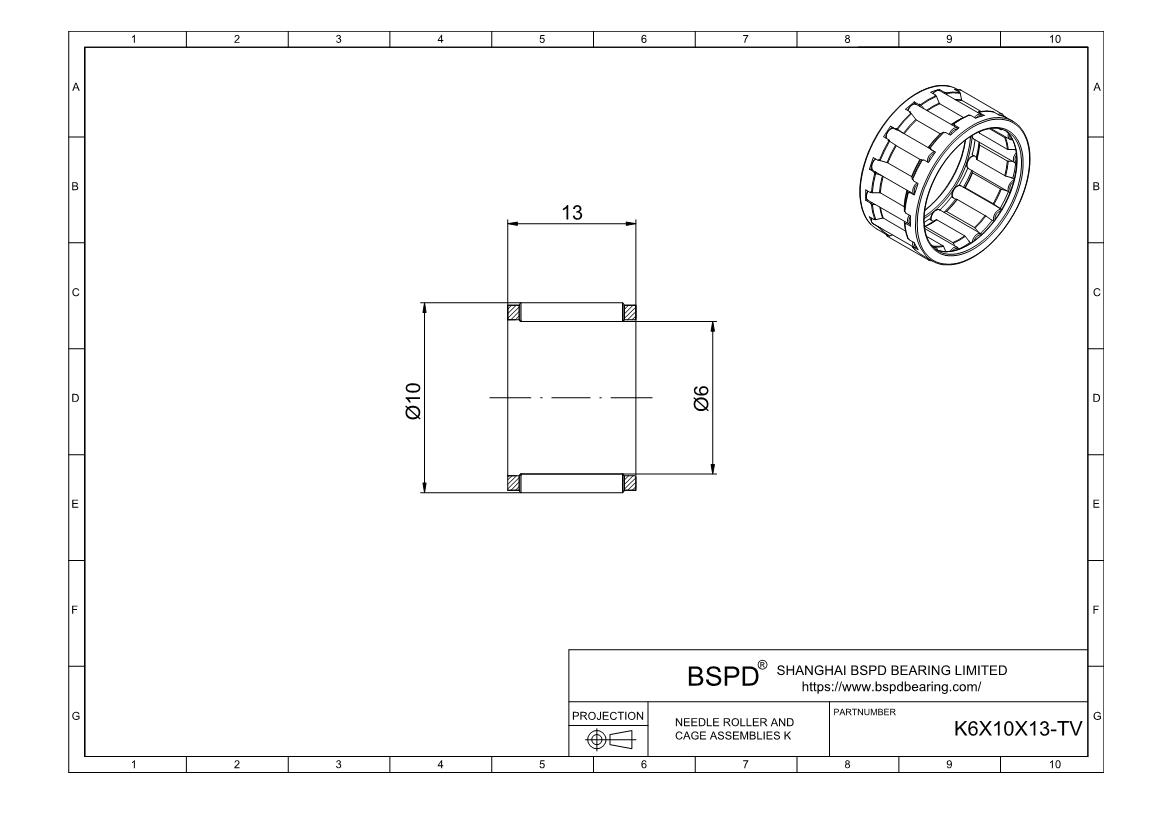

K6X10X13-TV
Needle Roller And Cage Assemblies
Dimensions: Bore (Inner) Diameter: 6 mm； Outer Diameter: 10 mm； Width (Thickness): 13 mm;
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Needle |
| Construction | Single Row |
| Seal Type | Open |
| System of Measurement | Metric |
| Part Number | K6X10X13-TV |
| Fw | 6 mm |
| Ew | 10 mm |
| Bc | 13 mm |
| Needle Material | Steel |
| Cage Material | PA66 |
| Dynamic Load Rating (Cr) (Newtons) | 3800 N |
| Static Load Rating (Cor) (Newtons) | 3100 N |
| Fatigue Load Rating (Cur) (Newtons) | 400 N |
| Max Speed (RPM) | 35500 1/min |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| Weight (g) | 1.9 g |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings K6X10X13-TV ? Needle Roller And Cage Assemblies Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
