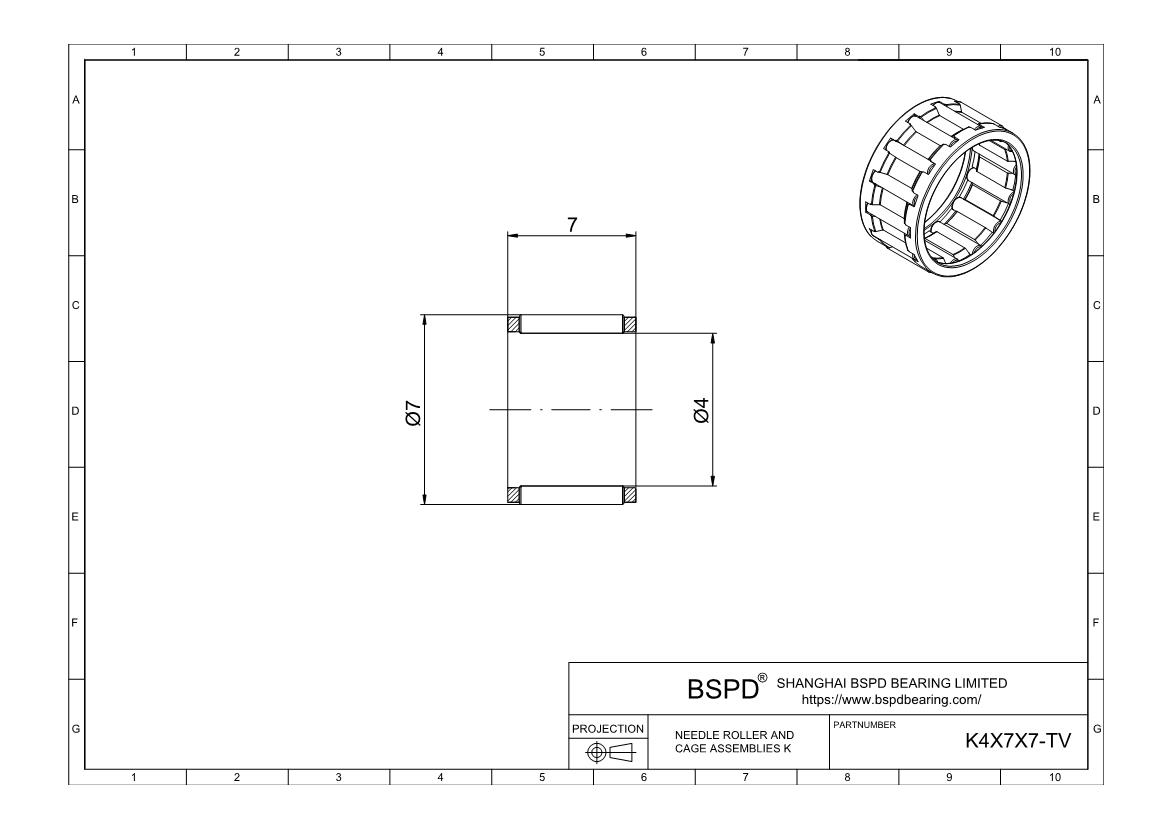

K4X7X7-TV
Needle Roller And Cage Assemblies
Dimensions: Bore (Inner) Diameter: 4 mm； Outer Diameter: 7 mm； Width (Thickness): 7 mm;
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Needle |
| Construction | Single Row |
| Seal Type | Open |
| System of Measurement | Metric |
| Part Number | K4X7X7-TV |
| Fw | 4 mm |
| Ew | 7 mm |
| Bc | 7 mm |
| Needle Material | Steel |
| Cage Material | PA66 |
| Dynamic Load Rating (Cr) (Newtons) | 1740 N |
| Static Load Rating (Cor) (Newtons) | 1270 N |
| Fatigue Load Rating (Cur) (Newtons) | 148 N |
| Max Speed (RPM) | 42500 1/min |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| Weight (g) | 0.5 g |
Print PDF
Request a 3D CAD Model
