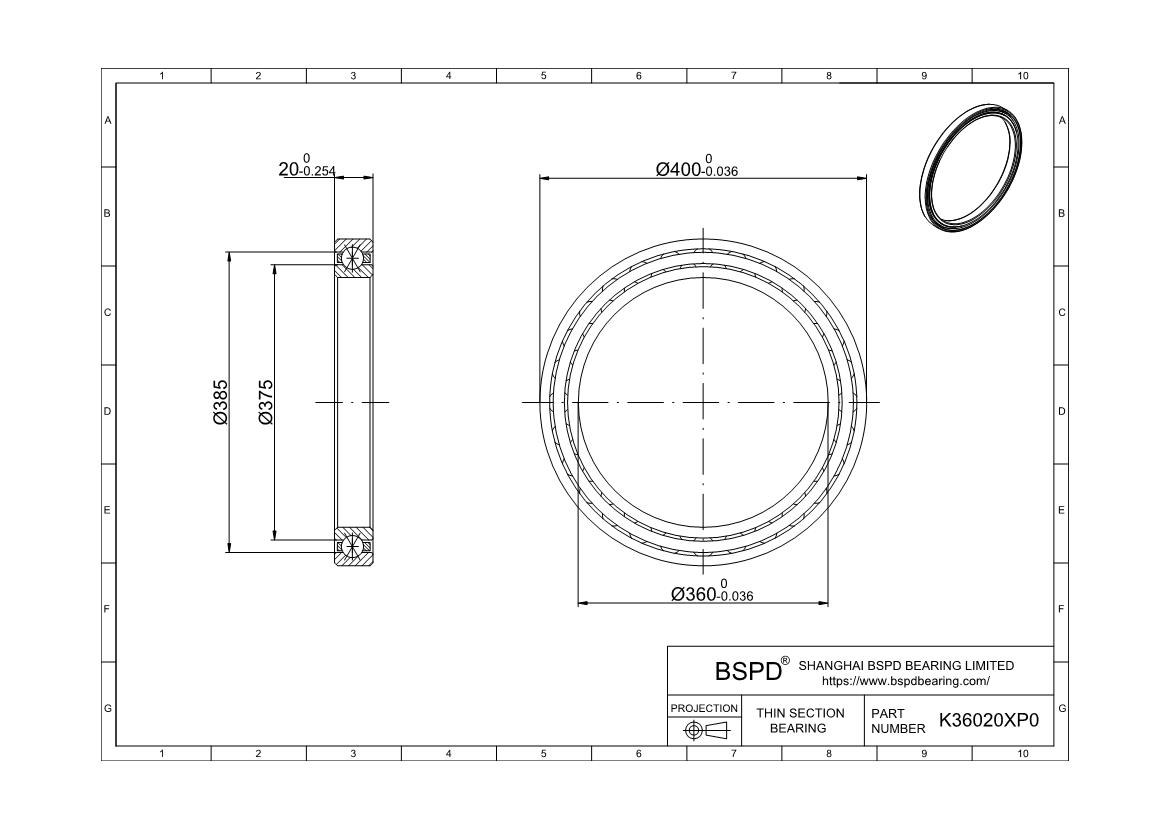

K36020XP0
RealiSlim MM Thin Section Metric Bearings
Dimensions: Bore (Inner) Diameter: 360 mm； Outer Diameter: 400 mm； Width (Thickness): 20 mm;
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Ball | |
| For Load Direction | Four Point | |
| Construction | Single Row | |
| Seal Type | Open | |
| Cross Section | 20 mm | |
| Part Number | K36020XP0 | |
| For Shaft Diameter | 360 mm | |
| Bore Dia (d) | 360 mm | |
| Bore Dia Tolerance | -0.036mm to 0 | |
| For Housing ID | 400 mm | |
| Outer Dia (D) | 400 mm | |
| Outer Dia Tolerance | -0.036mm to 0 | |
| Width (B) | 20 mm | |
| Width Tolerance | +.000 –.254mm | |
| Land dia.L1 | 375 | |
| Land dia.L2 | 385 | |
| Ring Material | 52100 Chrome steel | |
| Ball Material | 52100 Chrome steel | |
| Cage Material | Brass | |
| Dynamic (N) | Radial | 44306 |
| Thrust | 72648 | |
| Moment | 6316 | |
| Static (N) | Radial | 84151 |
| Thrust | 210372 | |
| Moment | 15988 | |
| Lubrication | Lubricated | |
| Shaft Mount Type | Press Fit | |
| Temperature Range | -30° to 110 °C | |
| ABEC Rating | ABEC-1 | |
| Radial Clearance | 0.0000 – 0.0005" | |
| RoHS | Compliant | |
| Weight (kg) | 2.73 | |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Thin Section Bearings K36020XP0 ? RealiSlim MM Thin Section Metric Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
