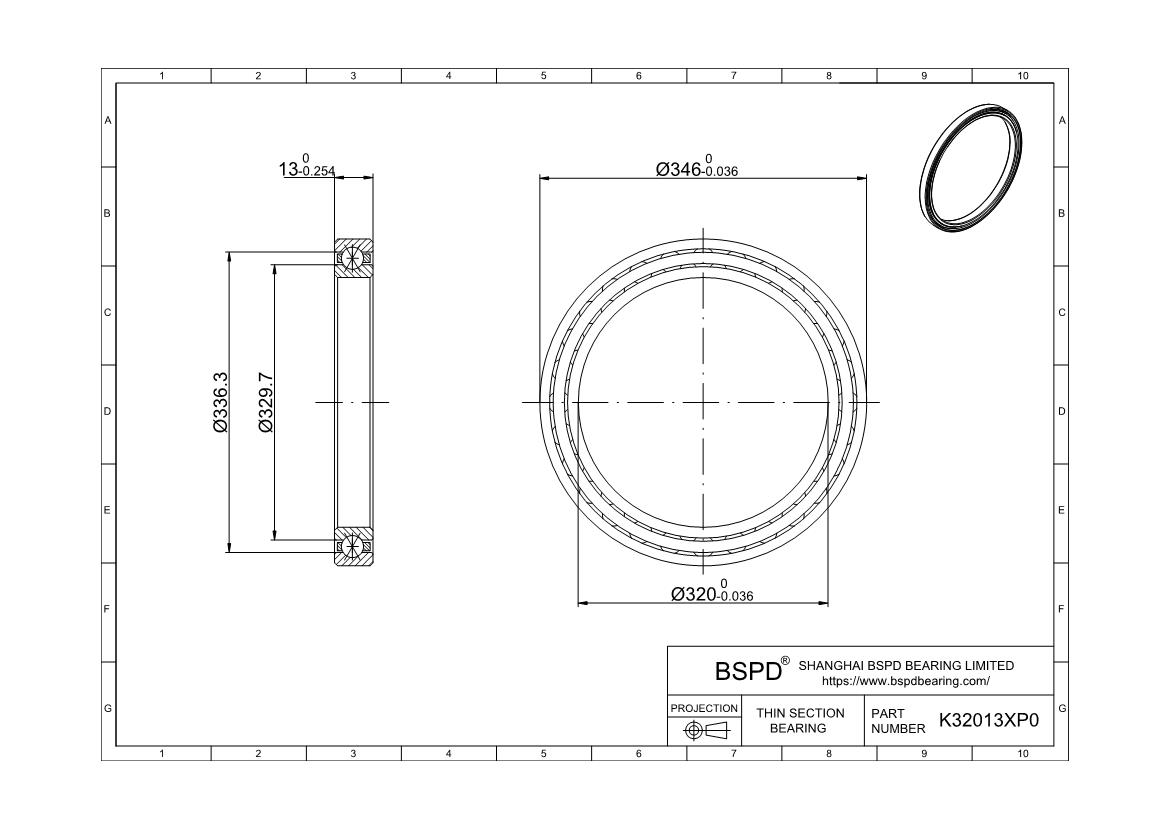

K32013XP0
RealiSlim MM Thin Section Metric Bearings
Dimensions: Bore (Inner) Diameter: 320 mm； Outer Diameter: 346 mm； Width (Thickness): 13 mm;
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Ball | |
| For Load Direction | Four Point | |
| Construction | Single Row | |
| Seal Type | Open | |
| Cross Section | 13 mm | |
| Part Number | K32013XP0 | |
| For Shaft Diameter | 320 mm | |
| Bore Dia (d) | 320 mm | |
| Bore Dia Tolerance | -0.036mm to 0 | |
| For Housing ID | 346 mm | |
| Outer Dia (D) | 346 mm | |
| Outer Dia Tolerance | -0.036mm to 0 | |
| Width (B) | 13 mm | |
| Width Tolerance | +.000 –.254mm | |
| Land dia.L1 | 329.7 | |
| Land dia.L2 | 336.3 | |
| Ring Material | 52100 Chrome steel | |
| Ball Material | 52100 Chrome steel | |
| Cage Material | Brass | |
| Dynamic (N) | Radial | 23722 |
| Thrust | 38893 | |
| Moment | 2963 | |
| Static (N) | Radial | 49445 |
| Thrust | 123613 | |
| Moment | 8232 | |
| Lubrication | Lubricated | |
| Shaft Mount Type | Press Fit | |
| Temperature Range | -30° to 110 °C | |
| ABEC Rating | ABEC-1 | |
| Radial Clearance | 0.0000 – 0.0005" | |
| RoHS | Compliant | |
| Weight (kg) | 0.97 | |
