K30020AR0 RealiSlim MM Thin Section Metric Bearings

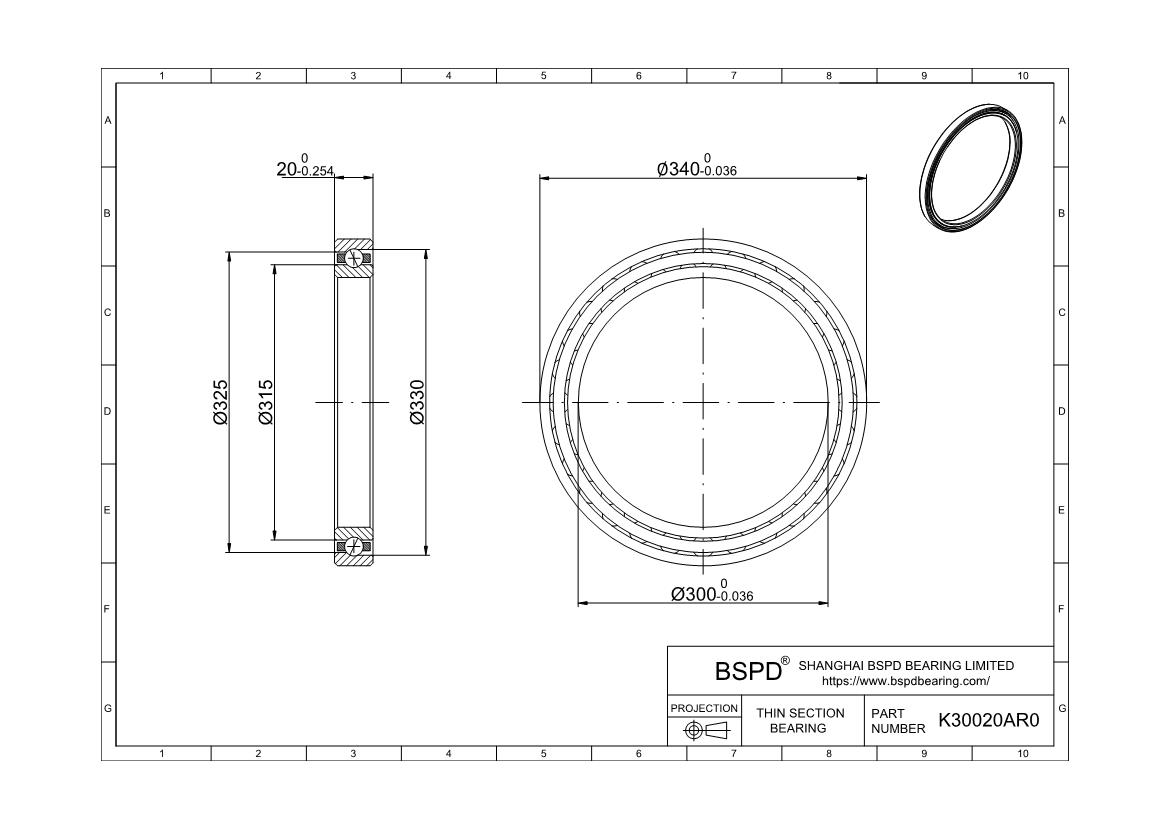

Dimensions: Bore (Inner) Diameter: 300 mm； Outer Diameter: 340 mm； Width (Thickness): 20 mm;

K30020AR0
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Ball
For Load Direction Angular
Construction Single Row
Contact Angle 30°
Seal Type Open
Cross Section 20 mm
Part Number K30020AR0
For Shaft Diameter 300 mm
Bore Dia (d) 300 mm
Bore Dia Tolerance -0.036mm to 0
For Housing ID 340 mm
Outer Dia (D) 340 mm
Outer Dia Tolerance -0.036mm to 0
Width (B) 20 mm
Width Tolerance +.000 –.254mm
Land dia.L1 315
Land dia.L2 325
C'Bore dia.L3 330
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material Brass
Dynamic radial (N) 32529
Static (N) Thrust 80630
Radial 85230
Thrust 246029
Lubrication Lubricated
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance 0.0000 – 0.0005"
RoHS Compliant
Weight (kg) 2.23
K30020AR0
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Thin Section Bearings K30020AR0 ? RealiSlim MM Thin Section Metric Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
