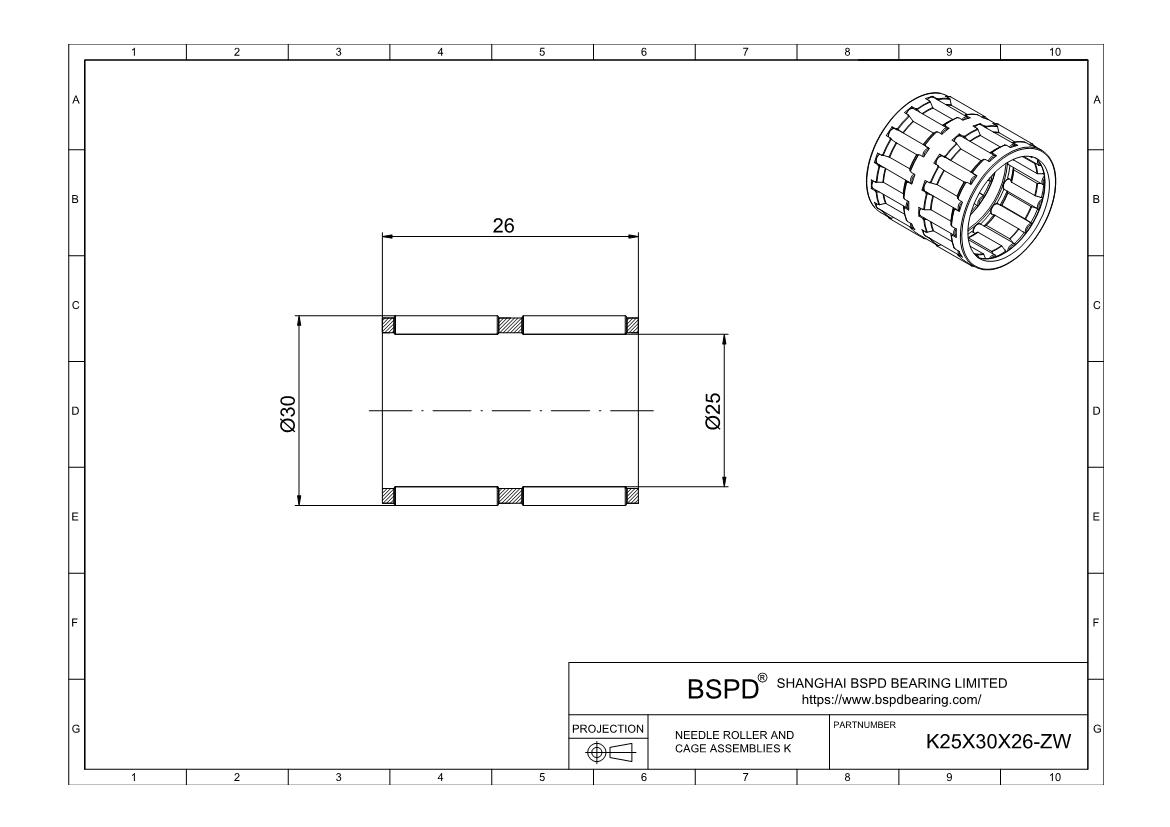

K25X30X26-ZW
Needle Roller And Cage Assemblies
Dimensions: Bore (Inner) Diameter: 25 mm； Outer Diameter: 30 mm； Width (Thickness): 26 mm;
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Needle |
| Construction | Double Row |
| Seal Type | Open |
| System of Measurement | Metric |
| Part Number | K25X30X26-ZW |
| Fw | 25 mm |
| Ew | 30 mm |
| Bc | 26 mm |
| Needle Material | Steel |
| Cage Material | Steel |
| Dynamic Load Rating (Cr) (Newtons) | 21400 N |
| Static Load Rating (Cor) (Newtons) | 35500 N |
| Fatigue Load Rating (Cur) (Newtons) | 4550 N |
| Max Speed (RPM) | 17800 1/min |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| Weight (g) | 19 g |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings K25X30X26-ZW ? Needle Roller And Cage Assemblies Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
