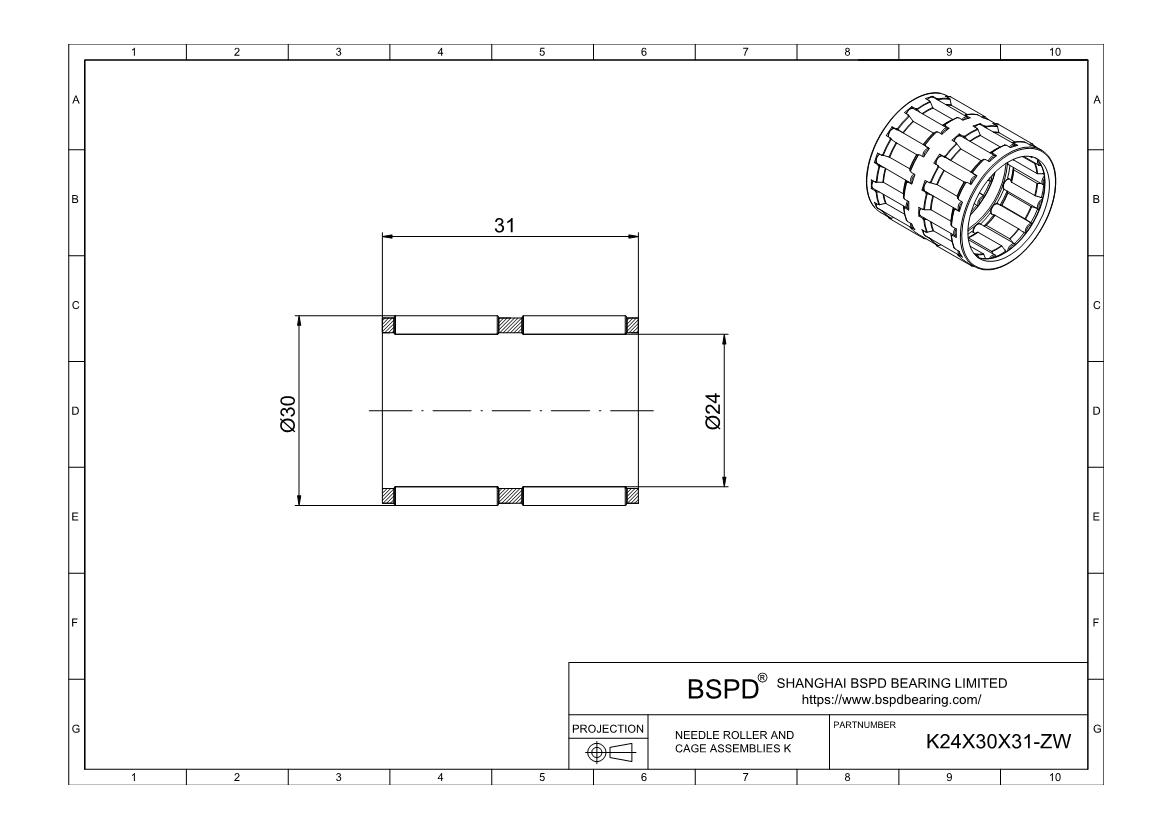

K24X30X31-ZW
Needle Roller And Cage Assemblies
Dimensions: Bore (Inner) Diameter: 24 mm； Outer Diameter: 30 mm； Width (Thickness): 31 mm;
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Needle |
| Construction | Double Row |
| Seal Type | Open |
| System of Measurement | Metric |
| Part Number | K24X30X31-ZW |
| Fw | 24 mm |
| Ew | 30 mm |
| Bc | 31 mm |
| Needle Material | Steel |
| Cage Material | Steel |
| Dynamic Load Rating (Cr) (Newtons) | 27500 N |
| Static Load Rating (Cor) (Newtons) | 43500 N |
| Fatigue Load Rating (Cur) (Newtons) | 5900 N |
| Max Speed (RPM) | 18100 1/min |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| Weight (g) | 32 g |
Print PDF
Request a 3D CAD Model
