J17008CP0
RealiSlim MM Thin Section Metric Bearings

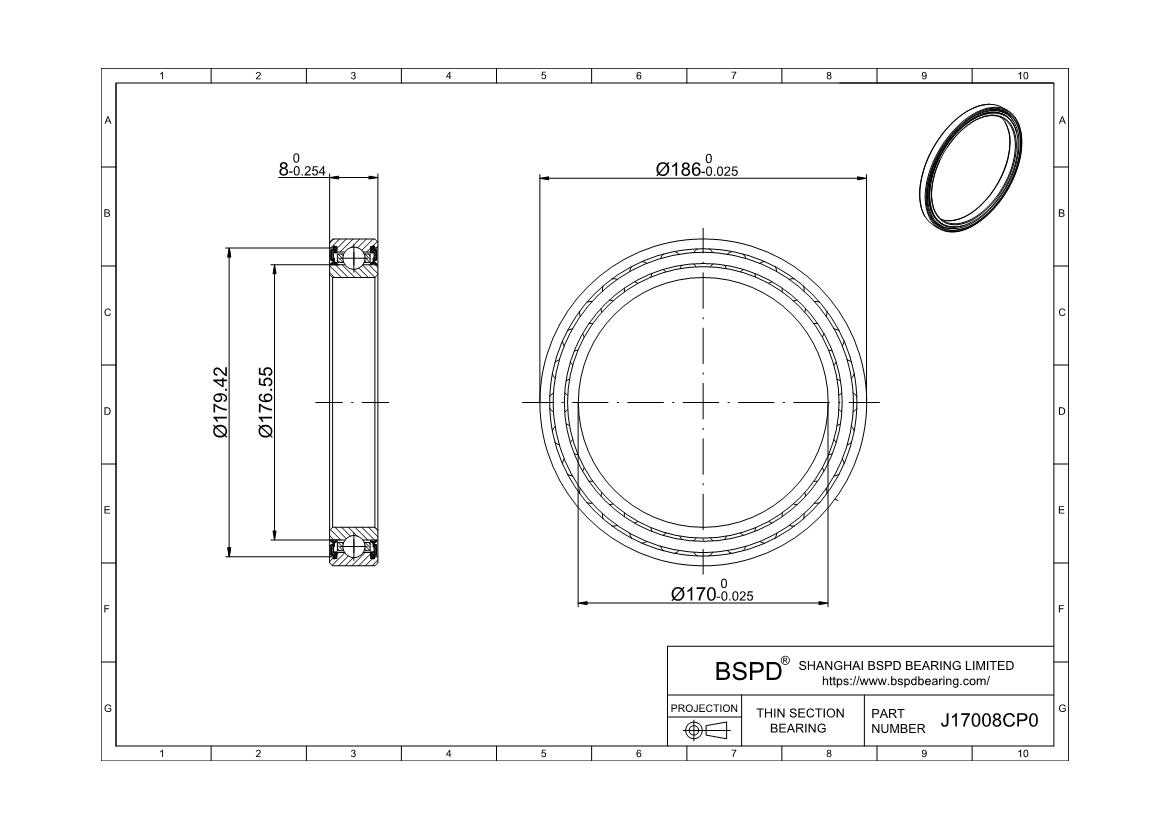

Dimensions: Bore (Inner) Diameter: 170 mm； Outer Diameter: 186 mm； Width (Thickness): 8 mm;
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Sealed |
| Cross Section | 8 mm |
| Part Number | J17008CP0 |
| For Shaft Diameter | 170 mm |
| Bore Dia (d) | 170 mm |
| Bore Dia Tolerance | -0.025mm to 0 |
| For Housing ID | 186 mm |
| Outer Dia (D) | 186 mm |
| Outer Dia Tolerance | -0.025mm to 0 |
| Width (B) | 8 mm |
| Width Tolerance | +.000 –.254mm |
| Land dia.L1 | 176.55 |
| Land dia.L2 | 179.42 |
| Ring Material | 52100 Chrome steel |
| Ball Material | 52100 Chrome steel |
| Cage Material | Brass |
| Dynamic radial (N) | 6727 |
| Static radial (N) | 17328 |
| Lubrication | Lubricated |
| Shaft Mount Type | Press Fit |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance | 0.0000 – 0.0005" |
| RoHS | Compliant |
| Weight (kg) | 0.20 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Thin Section Bearings J17008CP0 ? RealiSlim MM Thin Section Metric Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
