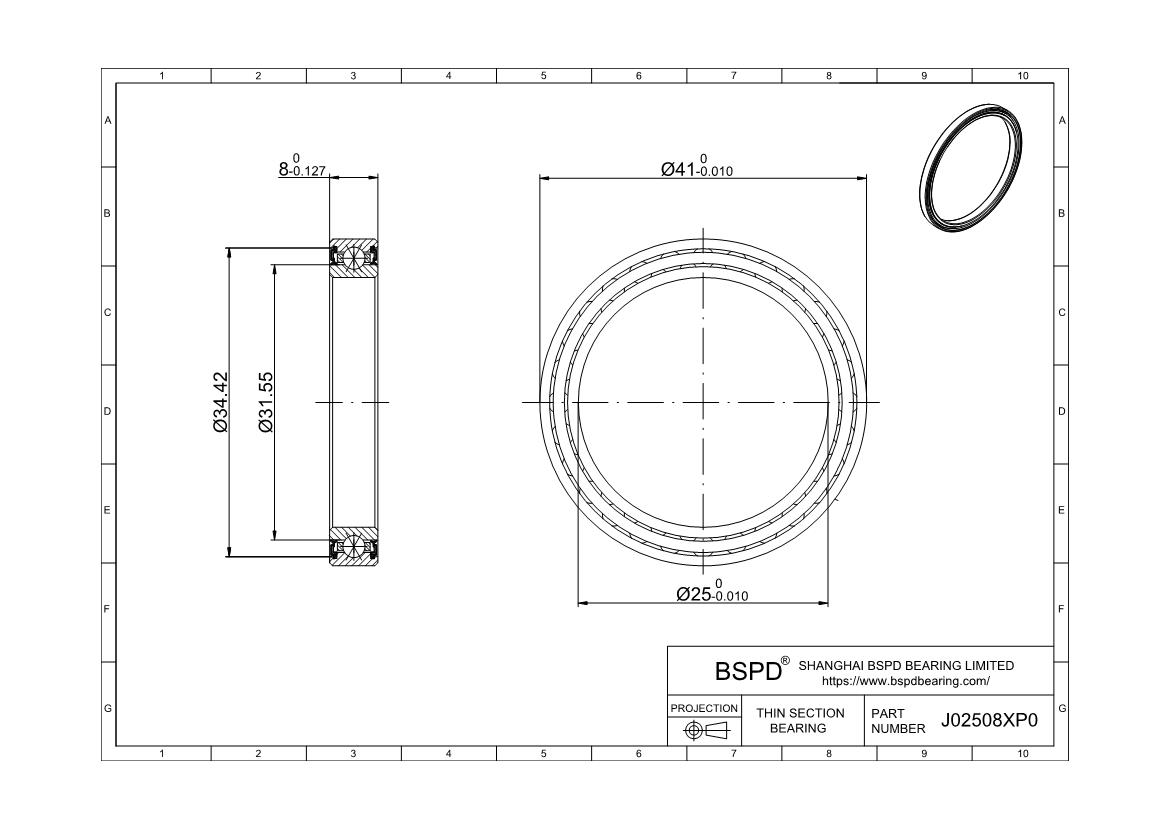

J02508XP0 RealiSlim MM Thin Section Metric Bearings
Dimensions: Bore (Inner) Diameter: 25 mm； Outer Diameter: 41 mm； Width (Thickness): 8 mm;

REQUEST FOR QUOTE

Product Attributes

Bearing Type		Ball
For Load Direction		Four Point
Construction		Single Row
Seal Type		Sealed
Cross Section		8 mm
Part Number		J02508XP0
For Shaft Diameter		25 mm
Bore Dia (d)		25 mm
Bore Dia Tolerance		-0.01mm to 0
For Housing ID		41 mm
Outer Dia (D)		41 mm
Outer Dia Tolerance		-0.01mm to 0
Width (B)		8 mm
Width Tolerance		+.000 –.127mm
Land dia.L1		31.55
Land dia.L2		34.42
Ring Material		52100 Chrome steel
Ball Material		52100 Chrome steel
Cage Material		Brass
Dynamic (N)	Radial	3246
	Thrust	4599
	Moment	40
Static (N)	Radial	3275
	Thrust	7433
	Moment	49
Lubrication		Lubricated
Shaft Mount Type		Press Fit
Temperature Range		-30° to 110 °C
ABEC Rating		ABEC-1
Radial Clearance		0.0000 – 0.0005"
RoHS		Compliant
Weight (kg)		0.06
